Von Duprin 6223 12VAC US10

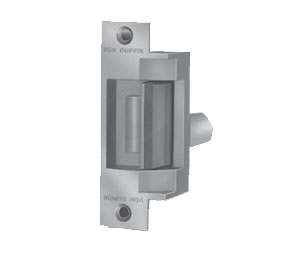

Von Duprin 6223 12VAC US10 Grade 1 Electric Strike 12VAC Satin Bronze
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
914.36 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $85.00 worth of product from Von Duprin to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Von Duprin 6223 12VAC US10 Grade 1 Electric Strike 12VAC Satin Bronze
Grade 1 Electric Strike
Closed back electric strike for use with mortise locks without deadbolt or cylindrical locks on 1-3/4" thick double door (hollow metal, aluminum or wood ) applications.
Designed to replace Von Duprin 3091 and 3092, mortise applications only - 4-3/4" miniumum stile
Provides remote release of a locked door
Allow the door to be opened without retracting the latchbolt. This occurs by the releasing of the electric strike lip (sometimes called keeper or gate). When the door closes the beveled latchbolt rides into the electric strike pocket.
Finish: Satin Bronze
Latchbolt throw: 3/4"
Faceplate size: 6" x 1-1/4"
Backbox depth: 4-1/2"
UL 10C certified for 3 hours when pair door has inactive leaf
Application: Closed back electric stirke for use on 1-3/4" (44 mm) thick double door applications. 4-3/4" (120 mm) minimum stile required. For a concealed vertical rod and mortise device combination specify "A" backbox.
Durable stainless steel construction
Meets BHMA A156.31, Grade 1 for endurance and strength
Static strength 1300 lbs
Dynamic strength 70 ft-lbs
Endurance 1,000,000 cycles
12VAC
Data Sheet
Wood Door Application
Electric Strikes Parts Manual

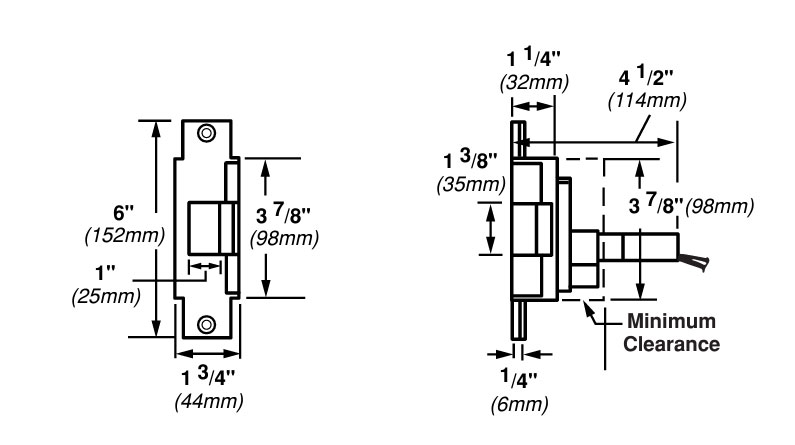

Dimensions
