Product Description:

Trine EN435 Electric Strike

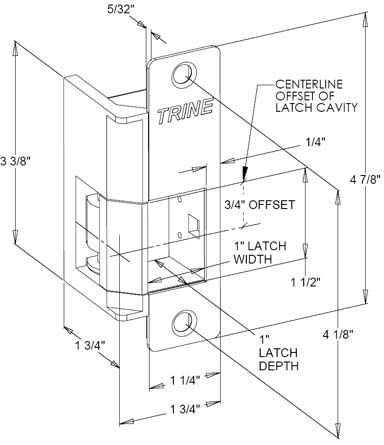

EN435 PRODUCT DIMENSIONS

FEATURES
	FACE PLATE - 1-1/4” X 4-7/8”
	ALL STAINLESS STEEL CONSTRUCTION
	DURABILITY - 1,000,000 Life cycles
	HOLDING FORCE - 2000 lbs. UL tested
	CAVITY DEPTH - 7/8”, CAVITY HEIGHT - 1-1/2”, CAVITY WIDTH - 1"
	CAVITY CENTERLINE OFFSET 1"
	HANDED-SPECIFY LH OR RH
	MORTISE TYPE - Backset 1 3/4" deep

STANDARDS
	UL LISTED - 10B fire rated ( Class A, 3-hour Single Swing Doors)
	UL LISTED - 1034 Burglary Resistant Locking Mechanism for Indoor or Outdoor Use
	ANSI - 1-1/4"X 4-7/8" Fits cutout Specification A115.1 ( With Slight Jamb Modification)
	BHMA - A156.5 - 1992 Grade 1

OPTIONAL FEATURES

NEW EN-LB: OPTICAL IR LATCHBOLT SENSOR AVAILABLE
EN-CA: Additional coil assemblies available in all voltages listed
LOW VOLTAGE BUZZER for audible signal when using DC voltage. Specify BZ-12 for 12 VDC or BZ-24 for 24 VDC.

FINISH (Specify When Ordering)
SATIN BRASS - US4 ; BRIGHT BRASS - US3; STANDARD FINISH - Satin Stainless Steel US32D; DARK BRONZE - Powder Coated; BRIGHT CHROME- US26 ;
ELECTRICAL CHARACTERISTICS CHART**
FOUR MAGNETIC COILS AVAILABLE Color coded wires depict the voltage of each coil.
VOLTAGE	WIRE COLOR
12 VAC	Blue(1) Orange/White(1)
24 VAC	Orange(1) Black/White(1)
12VDC	Orange/White(2)
24VDC	Black/White(2)

FAIL SECURE - NORMALLY LOCKED (Unlocked when energized) Units with AC coils are for Fail Secure (Intemittent duty) use only and should be energized for periods of less than one minute
VOLTAGE	CURRENT AMPS	OHMS	SOUND	DUTY
12VAC	.70	4.5	Buzz	Intm
24 VAC	.37	18.00	Buzz	Intm
12VDC	.28	43.00	Silent	Intm/Con
24VDC	.15	164.00	Silent	Intm/Con

FAIL SAFE (Reverse Action) NORMALLY UNLOCKED(Locked When Energized) Fail safe action (continuous duty) can only operate with DC coil assemblies. Units with DC coils are field reversible, fail safe action or fail secure continous duty operation. Strikes which are energisezed for periods longer than one minute need to use DC coils.
VOLTAGE	CURRENT/AMPS	OHMS	SOUND	DUTY
12 VDC	.28	43.0	Silent	Intm/Cont
24 VDC	.15	164.0	Silent	Intm/Cont
