Trine 4800 Electric Strike for Rim Panic Device

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Trine 4800 Electric Strike for Rim Panic Device
More from Trine
Price: $614.06 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 1 business day.

1-844-809-3667

Sales
Technical Support
Product Description:
trine logo
Trine 4800ES Electric Strike
full catalog trine

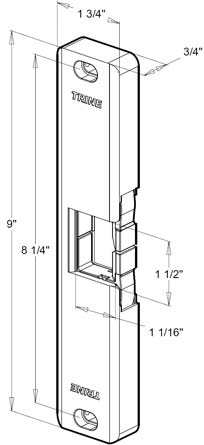

trine main
FEATURES
star_icon
SURFACE MOUNTING:
Unit only requires the drilling of (3) holes*
star_icon
ANCHORING SYSTEM: (Included)
Uniquely designed optional four pin anchoring system provides additional support beyond the standard two tapped mounting holes.
star_icon
STAINLESS STEEL CONSTRUCTION
star_icon
FAIL SECURE/FAIL SAFE FIELD SELECTABLE:
Unit is supplied with fail safe spring that is changed in the field when desired.
star_icon
1,500,000+ LIFE CYCLE TESTED
star_icon
3,000+ LBS. HOLDING FORCE
star_icon
STEEL SPACER:
We supply a 1/8" thick spacer for those installations that require mounting the strike closer to the panic bar. In addition, the spacer is used as a template during installation.
star_icon 12 THRU 24 AC/DC OPERATING VOLTAGE:
Expanding the use of our popular LC unit in the 3000 series, the 4800 has this unit built in providing the flexibility along with surge and kickback protection.
FINISH (Specify When Ordering)
star_icon
US3 - Bright Brass
star_icon
US4 - Satin Brass
star_icon
US10 - Satin Bronze
star_icon
US10B - Dark Bronze
star_icon
US26 - Bright Chrome
star_icon
US32D - Satin Stainless Steel
VOLTAGE
PULL IN / HOLD AMPS
DUTY Intm./Cont.
SOUND
12DC
.566/.217
Intm./Cont.
Silent
24DC
.253/.099
Intm./Cont.
Silent
12AC
.509/.181
Intm./Cont.
Silent
16AC
.402/.149
Intm./Cont.
Silent
24AC
.215/.087
Intm./Cont.
Silent
Questions and Answers
Q: how do know if power supply is AC or DC
A: Install a volt meter on the power coming out of the power supply and check both AC and DC setting until you get a reading.

Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.

(Required, used to email you once question is answered.)
