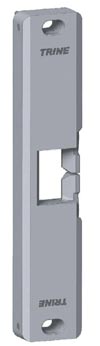

Trine 4800 Electric Strike
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
445.12 USD
In Stock Ready for Shipment
1. Select Finish
US32D Satin Stainless Steel
US3 Bright Brass (Add $50.62)
US4 Satin Brass (Add $50.62)
US10 Satin Bronze (Add $50.62)
US10B Dark Bronze (Add $50.62)
US26 Bright Chrome (Add $50.62)
2. Select Hand
LH Left Hand
RH Right Hand
LHR Left Hand Reverse
RHR Right Hand Reverse
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 1 business day.
Additional Declarations -
This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $85.00 worth of product from Trine to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Trine
4800 Electric Strike for Rim Panic Devices

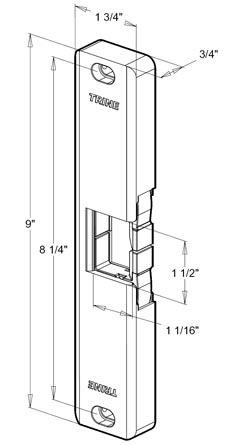

4800 PRODUCT DIMENSIONS
INSTRUCTIONS
Printable Catalog Page
FEATURES
SURFACE MOUNTING - Unit only requires the drilling of (3) holes
ANCHORING SYSTEM: (Included) - Uniquely designed optional four pin anchoring system provides additional support beyond the standard two tapped mounting holes.
ONE PIECE LOCKING MECHANISM - Our patented locking mechanism has one mechanism, which provides incredible strength, durability and reliablity due to fewer moving parts.
STAINLESS STEEL CONSTRUCTION
FAIL SECURE/FAIL SAFE FIELD SELECTABLE
1,500,00 + LIFE CYCLE TESTED
3,000 + LBS. HOLDING FORCE
STEEL SPACER- Comes with a 1/8" thick spacer for installations that require mounting the strike closer to the panic bar. The spacer is also used as template during installation.
12 THRU 24 AC/DC OPERATING VOLTAGE - Built in electronics AUTOMATICALLY allow use of 12 THRU 24 AC/DC with surge and kick-back protection.
FINISH
(Specify When Ordering)
STANDARD FINISH - Satin Stainless Steel US32D;
BRIGHT BRASS - US3;
SATIN BRASS - US4 ;
Satin Bronze - US10 ;
Dark Bronze - US10B
Bright Chrome - US26
VOLTAGE
PULL IN/HOLD AMPS
OHMS
SOUND
12DC
.566/.217
Intm./Cont.
Silent
24DC
.253/.099
Intm./Cont.
Silent
12AC
.509/.181
Intm./Cont.
Silent
16AC
.402/.149
Intm./Cont.
Silent
24AC
.215/.087
Intm./Cont.
Silent
