Trine 3478ES

Name: Trine 3478 Electric Strike 24VDC @ 240mA
Brand: Trine
SKU: Trine 3478ES
Price: 249.04 USD

Trine 3478 Electric Strike 24VDC @ 240mA

× This image is for a similar product but it will differ in size, color and/or other attributes.

Trine 3478 Electric Strike 24VDC @ 240mA

Price: $249.04 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Trine 3478 Electric Strike 24VDC @ 240mA

3478 PRODUCT DIMENSIONS

INSTRUCTIONS

Printable Catalog Page

FEATURES
	Holding Force 1200lbs
	Life Cycles 500,000
	Fail Secure
	Intermittent Duty
	All Stainless Steel
	Standard operating voltages,12VDC & 24VDC models, intermittent only
	1" backset allows for installation without removal of most dust boxes
	LC Option: "All In One Voltage" model with range of 12V thru 24V - AC & DC, Intermittent or Continuous duty. Both electric strike and host controller are electrically protected.

FINISH (Specify When Ordering)
	Bright Brass (US3)
	Satin Brass (US4)
	Dark Bronze - Powder Coated (US10B)
	Satin Stainless Steel (US32D)
	Polished Chrome (US26)

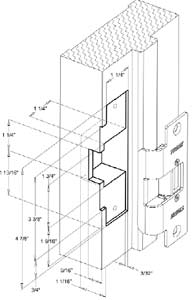

3478 Metal Frame Preparation		3478 Wood Frame Preparation
3478 Electric Strike Metal Frame Preparation		3478 Electric Strike Wood Frame

Replaces the ANSI 115.1 4-7/8 x 1-1/4 standard frame preparation. The 3478 requires that you cut 1-1/4” high and 7/16” deep into the face of the frame to mortise the flange for the 3-3/8” full lip extension. This can be accomplished with use of a Dremel tool or scoring and braking away for the 1-1/4” cut into the face of the frame. The surrounding dust shield functions as a guard from frame filler material entering the latch bolt path, while it travels to engage the electric strike keeper.		The 3478 will also accomodate installation in wood frame of 1-3/4” and 1-3/8” thicknesses. The need remains the same to cut the face of the frame for the 1-1/4” x 7/16” modification, to the standard ANSI 4-7/8 frame preparation. This will allow the latch bolt flange of faceplate to be mortised into the frame for a proper fit. The frame is also cut 1-1/4 x 2-1/4” to fit the mechanism. The installation would require the use of a 1” chisel and a small jab or jig saw to make the frame modification.
