Trine 014C

Name: Trine 014 Standard Electric Strike Chrome
Brand: Trine
SKU: Trine 014C
Price: 122.29 USD

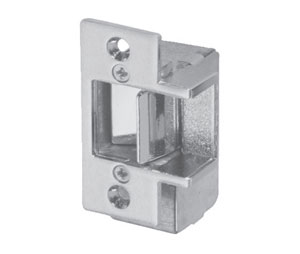

Trine 014 Standard Electric Strike Chrome

× This image is for a similar product but it will differ in size, color and/or other attributes.

Trine 014 Standard Electric Strike Chrome

Price: $122.29 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

Additional Declarations - This manufacturer has an order minimum of $85.00 - if your total is less than this amount, the lead time approximately 2-3 weeks before it would ship. Simply exceed this minimum order amount so that we can drop ship the material to your location.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Untitled Document

Trine 014 Standard Electric Strike Chrome

014 PRODUCT DIMENSIONS

Printable Catalog Page

Instructions

FEATURES
	FACE PLATE - 1-1/8” X 2-3/4”
	MINIATURIZED DESIGN - Smallest Electric Strike Available - Trucks into Hollow Metal Jambs and Partitions
	SCRATCH AND CORROSION RESISTANT FACE PLATE
	DIE CAST CASE
	SOLID CAST LATCH - Chrome Plated Cavity Depth - 1/2”; Width - 5/8”; Height - 1-1/8”
	HEAVY DUTY LATCH SPRING
	MORTISE TYPE - Backset 1-5/16” Deep
	FAIL SECURE - (Standard Action) Unlocks When Energized
	For new or replacement installations in metal jambs. Use with locksets having up to 5/8” throw, based on 1/8” door gap.

FINISH (Specify When Ordering)
	BRASS - Powder Coated (0014)
	SATIN CHROME - US26D (0014C)

ELECTRICAL CHARACTERISTICS

8-16 VAC/4-6 VDC (Standard Voltage): 2 Black Wire Leads
12 VDC: 1 Red Wire Lead, 1 White Wire Lead
24 VAC: 2 Red Wire Leads
24 VDC: 1 Black Wire Lead, 1 White Wire Lead

FAIL SECURE - NORMALLY LOCKED (Unlocked when energized)
VOLTAGE	CURRENT AMPS	OHMS	SOUND	DUTY
10-16 VAC	1.5-2.7	4.3	Buzz	Intm
12 VDC	.184	65.00	Silent	Intm
24 VAC	.895	14.0	Buzz	Intm
24 VDC	.100	240	Silent	Intm/Con

COMPATIBLE LOCKSET
ACCURATE	62, 66, 76
ADAMSRITE	4700-8300, 8400
ARROW	C, H, M
BEST	5, 7, 50, 6TDL
CORBIN	1400-5600, 6100-6600
DEXTER	DEXLOCK, DURALOCK
DOMINION	300, 400, 5000
GUARD	1990
FALCON	A, BA, D, E, F, N,S
HARLOC	6900
KWIKSET	400-500, 582, 583
LOCKWOOD	900
LORI	80/8200, 81/8300,
LSDA	1000-1500, 100-150
MARKS	110
NATIONAL	400
PDQ	SR, SV, SX
PARKER	160A
RUSSWIN	3400, 4300
SARGENT	6, 7, 8, 9, 10
SCHLAGE	A, F
TACO	ED, HV, LXV, SV
TAYMOR	28
WEISER	A, BA, D, E
WESLOCK	ALL LOCKS
YALE	5200, 5300
