Trine 004

Name: Trine 004 Standard Electric Strike Brass
Brand: Trine
SKU: Trine 004
Price: 127.01 USD

Trine 004 Standard Electric Strike Brass

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $127.01 USD

Comments (Optional)

This item is not in stock and typically ships in 1 business day.

Sales

Technical Support

Product Description:

Untitled Document

Trine 004 Standard Electric Strike Brass

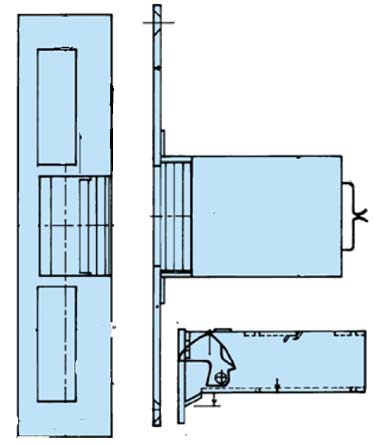

004 PRODUCT DIMENSIONS

FEATURES
	FACE PLATE - 1-3/8" X 6-1/4"
	DURABILITY – 500,000 Life cycles
	HOLDING FORCE - 1000 lbs.
	SCRATCH & CORROSION RESISTANT FACE PLATE
	KNOCKOUTS TOP AND BOTTOM - Height - 11-1/16: Width - 9/16" - To be used for Deadbolts (Cannot be released electrically)
	SOLID CAST LATCH - Chrome Plated Cavity Depth - 1/2"; Width - 1/2"; Height - 1- 9/16"
	NON-HANDED
	MORTISE TYPE - Backset 2-3/4" Deep
	FAIL SECURE - (Standard Action) Unlocks When Energized
	ONE-PIECE RELEASE MECHANISM - (U.S. Patent #4,984,835)

FINISH (Specify When Ordering)
	BRASS - Powder Coated (004)

ELECTRICAL CHARACTERISTICS

FAIL SECURE - NORMALLY LOCKED (Unlocked when energized)
VOLTAGE	CURRENT AMPS	OHMS	SOUND	DUTY
8-16 VAC/ 4-6VDC	1.3-2.7	1.4	Buzz	Intm
12 VDC	.40	30.0	Silent	Intm/Con
24 VAC	1.40	4.7	Buzz	Intm
24 VDC	.19	125.0	Silent	Intm/Con

FAIL SAFE (Reverse Action) NORMALLY UNLOCKED (006RS) (Locked When Energized) Continuous Duty DC Coil which is energized for longer than one minute. Add RS to catalog number when ordering
VOLTAGE	CURRENT/AMPS	OHMS	SOUND	DUTY
12 VDC	.40	30.0	Silent	Intm/Cont
24 VDC	.19	125.0	Silent	Intm/Cont
