- Electronic Specifications:
- Voltage: 24VDC or 12VDC

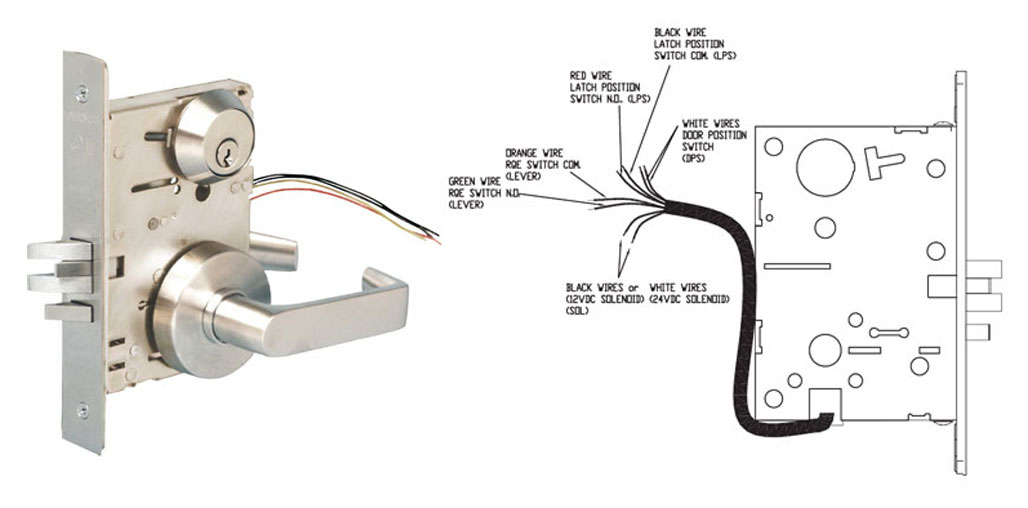

- Monitoring Capability: Request to Exit; Latch Position; Door Position
- Solenoid wire size: 24AWG
- Reed switch wire size: 22AWG
- Other switch wire size: 26-28AWG
- Fail Safe: Available
- Fail Secure: Available
- Mechanical Specifications:
- Door Thickness: 1-3/4" standard
- Backset: 2-3/4"
- Trim: Outside lever is rigid when locked
- Latchbolt: Stainless Steel, Split, Anti-Friction, 3/4" Projection
- Guardbolt: Stainless Steel
- Faceplate: Stainless Steel, 1-1/8" x 8"
- Strike: ASA Stainless Steel or Plated Steel, 1-1/4" x 4-7/8"
- Escutcheon: Brass or Stainless Steel
- Lever: Forged brass or Stainless Steel

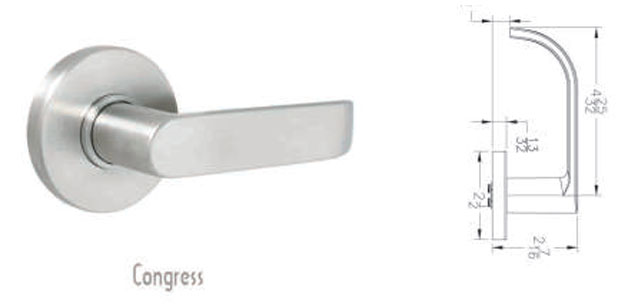

- Lever Style: Sentinel (S), Quest (Q) and Gala(G), Congress(C), Imperial (I), Tango (T), Regal (R), Artistic (A)
- Cylinder:
- 6Pin Schlage® C Keyway, standard
- Small Format IC with or without core available, 6 or 7pin core, Best A keyway
- Schlage® Large Format IC less core available
- Corbin® Large Format IC less core available, for 6pin core
- High Security Cylinder available, 6pin, TownSteel L keyway
- High Security SFIC Core available, 7pin, TownSteel L keyway
- Finish: 8 BHMA finishes US26D, US15, US10B, US32D, US3, US4, US26, US32
- Function: Most ANSI functions available
- Keying: KD standard, KA, MK, GMK, GGMK, Construction Available
- Code Compliance:
- UL: UL 10C Listed 3-hour fire rated
- ANSI/BHMA: A156.13-2005 Grade 1 Certified
- BAA: Meet the Buy American Act
- ADA: All lever trims meet the American with Disabilities Act
- RoHS: Meet requirement of EU RoHS Directive 2002/95EC
- Warranty: 1-year limited for electronic, 5-year limited for finish, 10-year limited for mechanical
