TownSteel MRX-S-L 19 X Lever US32D

Name: TownSteel MRX-S-L 19 X Lever US32D Sectional Rose Style Non-Keyed Privacy/Bathroom Function Heavy Duty Ligature Resistant Mortise Lock with Deadbolt X Lever - Satin Stainless Steel
Brand: TownSteel
SKU: TownSteel MRX-S-L 19 X Lever US32D
Price: 919.47 USD

TownSteel MRX-S-L 19 X Lever US32D Sectional Rose Style Non-Keyed Privacy/Bathroom Function Heavy Duty Ligature Resistant Mortise Lock with Deadbolt X Lever - Satin Stainless Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

TownSteel MRX-S-L 19 X Lever US32D Sectional Rose Style Non-Keyed Privacy/Bathroom Function Heavy Duty Ligature Resistant Mortise Lock with Deadbolt X Lever - Satin Stainless Steel

Price: $919.47 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 3-5 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

MRX-S-L 19 X Lever US32D Sectional Rose Style Non-Keyed Privacy/Bathroom Function Heavy Duty Ligature Resistant Mortise Lock with Deadbolt X Lever - Satin Stainless Steel

The MRXL series Mortise Lockset with Ligature Resistant Lever Trim is designed for facilities housing patient at risk
MRX-S-L provides rose trim for new or retrofit application
Integral part of the Health/Safety and Accident Prevention programs
Clutching Mortise function can be activated for I/S and/or O/S levers
Outside clutching lever to protect lock against abuse and allow free rotation
Variety of mortise functions available to fit unique security and safety requirements
Meets or exceeds all performance testing of ANSI A156.13 Grade 1 Mortise Locks
UL & ULC Listed 3-Hour Fire Rating
Non-Keyed
Style: Sectional - Rose Trim
Function: Privacy/Bathroom (19)
Trim: with Deadbolt X Lever
Finish: Satin Stainless Steel (US32D)
Please Select Handing when placing an order.

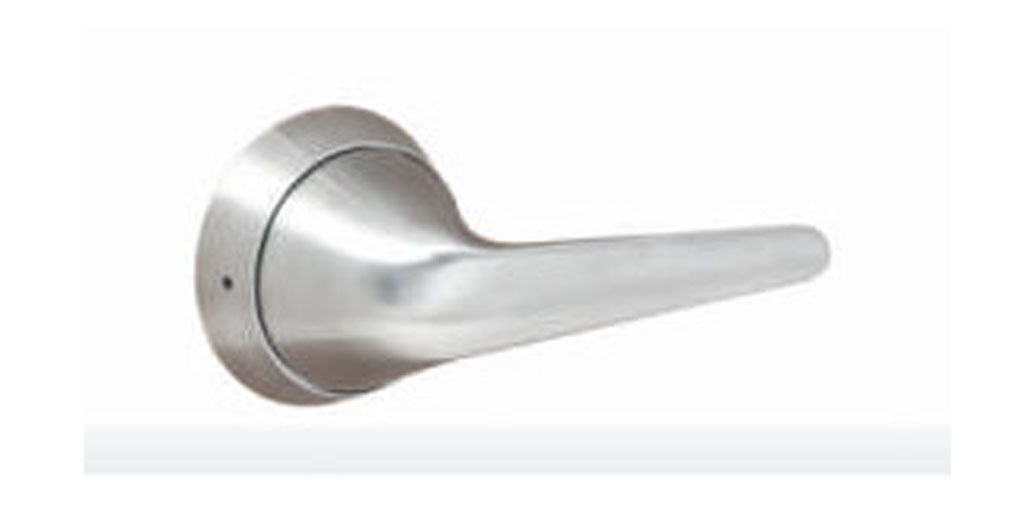

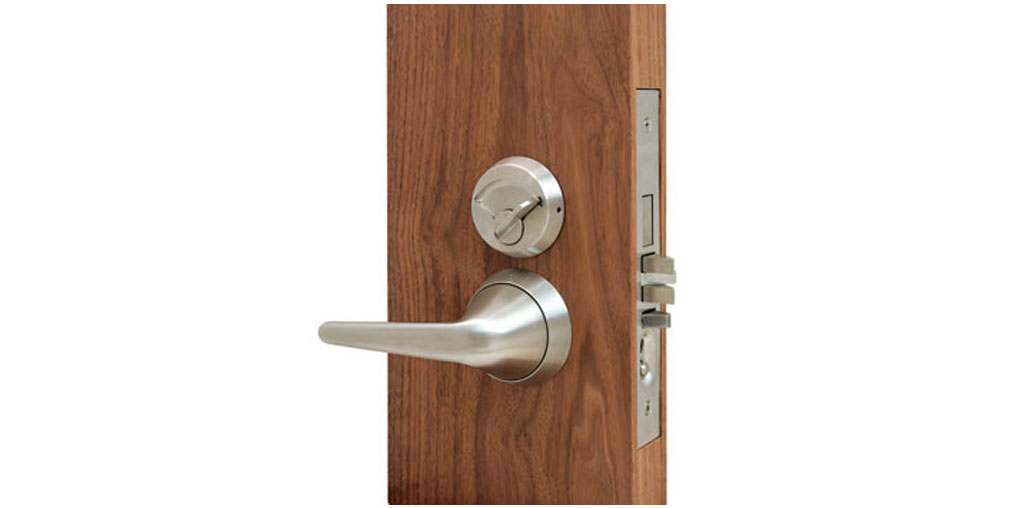

X Lever Type Click to Enlarge	Rose Style Click to Enlarge

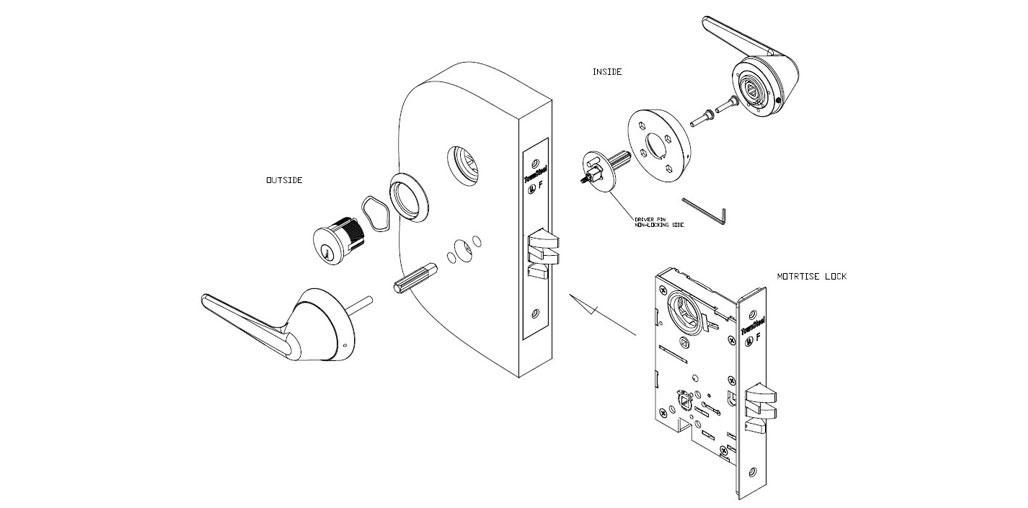

MRX-L Series Ligature Resistant Mortise Lock Profile	Handing Chart

Click to Enlarge	Click to Enlarge

Keying Options - Please Select Keying Option, Key Quantity and Key Stamping when placing an order.

Select Keying Option: KD standard, KA, MK available. Select Quantities of Keys: 2 keys are included with the lock itself, however additional keys are available for additional charge. Keying charge includes Two keys per change. Master Key Not included. Select Key Stamping: If key stamping is required an additional fee wil be charged. Please select the number of keys equal to the quantity of keys selected above. Indicate Key Stamping Information (Optional): Please provide us with a max. 6 characters.

Additional Product Information

Door Thickness: 1-3/4" Standard Backset: 2-3/4" Handing: Handed, field reversible Finish: US32D Function: Most ANSI functions available Rose: Stainless Steel, 2-3/4" in diameter Lever: Stainless Steel Thumb Turn: Ligature resistant, ADA compliant standard Faceplate: Stainless Steel, 1-1/4" x8" Strike: Stainless Steel, ASA, 1-1/4" x 4-7/8" Mounting: Through-bolt, tamper resistant mounting screws, for wood and metal door Cylinder: Brass with stainless steel cover, 6pin, Schalge "C" keyway standard, 2 keys per cylinder Small Format IC: Available with or without core, 6 or 7pin core Schlage Large Format IC: Available in less core Corbin Large Format IC: Available in less core, for 6pin core High Security Cylinder: Available, TownSteel "L" keyway, 6pin High Security SFIC: Available, TownSteel "L" keyway, 7pin Code Compliance: ANSI/BHMA: Mortise body is ANSI/BHMA A156.13-2005 Grade 1 Certified UL/ULC: Mortise body is UL/ULC 10C listed 3-hour rating BAA: Meet the Buy American Act ADA: Meets requirements of the Americans with Disabilities Act Warranty: 10-Year Limited TownSteel has been manufacturing commercial hardware for over 25 years. They take pride in their ability to maintain a product that keeps people safe. Over 25 years, they've grown into an international enterprise with major category-leading security products sold in over 20 countries.
