- Door Thickness: 1-3/4" Standard
- Backset: 2-3/4"
- Latchbolt: Stainless Steel, Split, Anti-Friction,
3/4" Projection
- Deadbolt: Stainless Steel, Anti-Saw with Hardened
Pins, 1" Projection
- Guardbolt: Stainless Steel
- Strike: Stainless Steel or Plated Steel, 1-1/4"
x 4-7/8"
- Faceplate: Brass or Stainless Steel, 1-1/4" wide
- Stop Works: Stainless Steel, Rocker Type

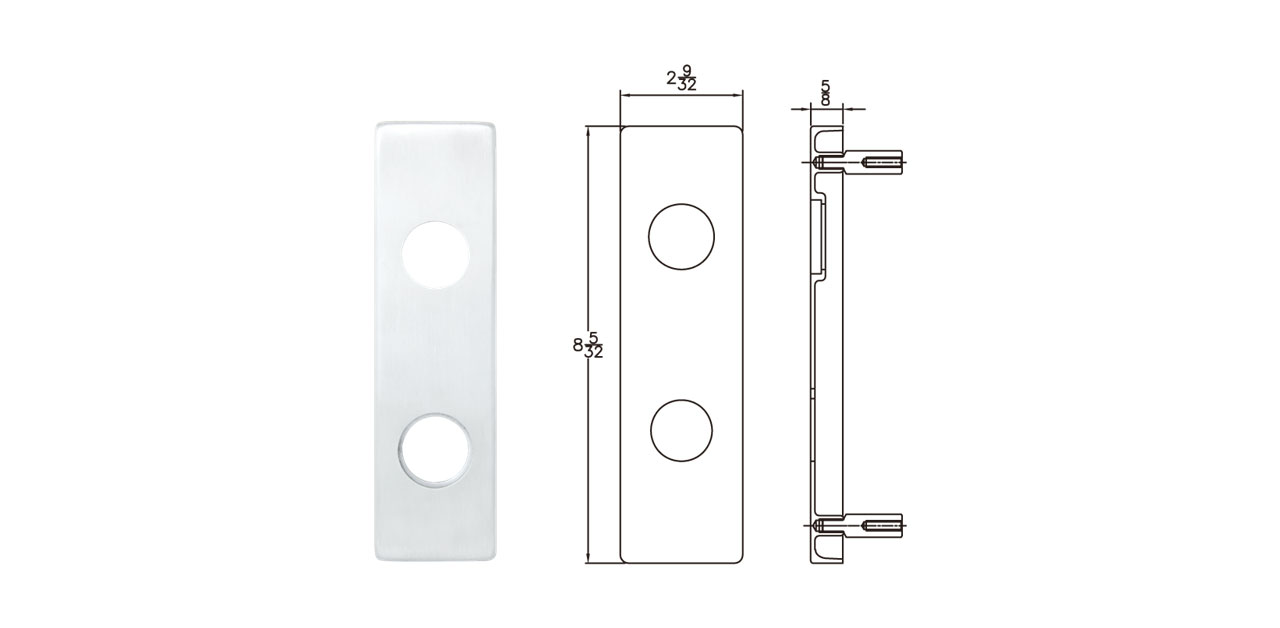

- Escutcheon: Brass or Stainless Steel, Regular style 8-5/32" x 2-9/32"

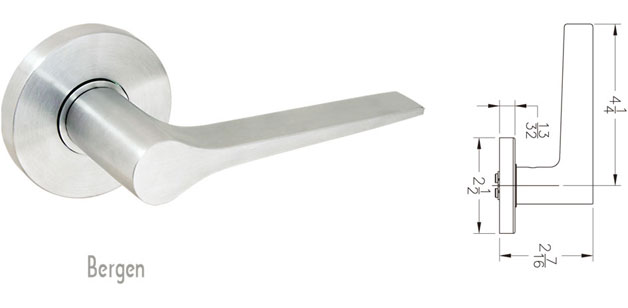

- Lever: Brass/Zinc Plated or Stainless Steel
- Thumb Turn: Brass or Stainless Steel, Classic Visible
standard
- Finish: US26D, US10B, US32D, US3, US4, US26,
US32
- Function: Most ANSI functions available
- Cylinder: 6Pin, Brass, Schlage "C" keyway, 2 keys
per cylinder, standard
- Small Format IC: Available, with or without Core,
7Pin Brass Core, 2 keys per Cylinder
- Schlage Large Format IC: Available in less core
- Corbin Large Format IC: Available in less core
- High Security Cylinder: Available, TownSteel "L"
keyway, 6pin, 2 keys per cylinder
- High Security SFIC: Available, TownSteel "L" keyway,
7pin, 2 keys per cylinder
- Keying: KD standard, KA, MK, GMK, GGMK, Construction
Available
- Code Compliance:
- UL: UL 10C Listed 3-hour fire rated
- ANSI/BHMA: A156.13-2005 Grade 1 Certified
- BAA: Meet the Buy American Act
- ADA: All lever trims meet the American with
Disabilities Act
- RoHS: Meet requirement of EU RoHS Directive
2002/95EC
- Warranty: 10-Year Limited
