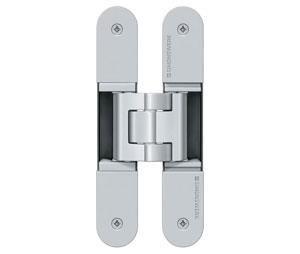

Made in Germany, TECTUS® is the most comprehensive concealed hinge system for premium flush doors. Easily adjustable in 3-Dimensions, Simonswerk's TECTUS® hinges bring an unparalleled level of performance, precision, and control over what has previously been a difficult detail to build and maintain. There is no other hinge system in the world that provides the solutions and easy on the eyes: for architects and designers choosing TECTUS® can make the difference between realizing your vision and having it remain just a vision.
- Features:
- Completely concealed hinge system
- For wood, steel or aluminum door panels and frames
- For flush residential and commercial doors
- Finger protection due to a small gap between door and frame
- Easily adjustable in three dimensions (side +/- 3.0 mm (0.118"), height +/- 3.0 mm (0.118"), compression +/- 1.0 mm (0.039"))
- Maintenance-free slide bearings
- UL listed for 20 minute fire door
- Technical details:
- Load capacity: 80 kg (176 lbs.)
- Length 160 mm (6.299")
- Width (door) 28 mm (1.102")
- Width (frame) 28 mm (1.102")
- Router bit 3/4"
- Collar diameter: 1"
- Finishes:
- satin chrome look (F1) (124), satin nickel look (F2) (125), stainless steel look (SSL) (126), rustic umber (156), bronze metallic (168), traffic white (RAL 9016) (070), matte deep black (RAL9005) (107), polished brass (030), polished nickel (038), satin nickel (144), satin chrome (146), bronze finish light (175), bronze finish (174), bronze finish dark (176), satin brass (047), other finishes available upon request
- Application Range: Fire Resistant, Smoke Resistant, Soundproof, Forced Entry Resistant
- Note:
- The load capacity mentioned above refers to the use of 2 hinges per door leaf with a height / width ratio of 2:1 (see page 46 for further detail).
- For a minimum door panel thickness of 38 mm (1-1/2")..
- For fire rated doors: Check with door manufacturer regarding the usage of additional required intumescent material..
- Square-corner cover plates are available upon request
|
