TA SF-DL3236-DU

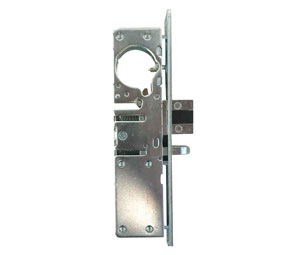

Name: TA SF-DL3236-DU Deadlatch Lock 1-1/8" - 1/2" Throw - Duronodic Finish
Brand: Trans-Atlantico
SKU: TA SF-DL3236-DU
Price: 16.04 USD

TA SF-DL3236-DU Deadlatch Lock 1-1/8" - 1/2" Throw - Duronodic Finish

× This image is for a similar product but it will differ in size, color and/or other attributes.

TA SF-DL3236-DU Deadlatch Lock 1-1/8" - 1/2" Throw - Duronodic Finish

Price: $16.04 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 15 business days.

Trans-Atlantic has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

SF-DL3236-DU Deadlatch Lock 1-1/8"- 1/2" Throw - Duronodic Finish

Features

Narrow stile deadlatch
For use with mortise cylinders, lever handles, push paddles.
Muti-Functional latch made for use with: All brands and models of trimline aluminum doors and other narrow style commercial doors
This is the latch you need when converting from an unlatched to latched door and can include the use of an automatic electronic strike release.

Instructions

Product Information

Function: This lock is very versatile. It can be locked in a “hold-open” position. It is ideal for use during heavy traffic flow and will allow two way traffic such as in hospitals, banks, stores and other buildings which require a free, two-way entrance at times and an “exit only” at other times.
This latch is interchangeable without any door style modifications
Operation: Turning key in cylinder, operating inside lever handle or push paddle will retract spring loaded latchbolt
Backset: 1-1/8"

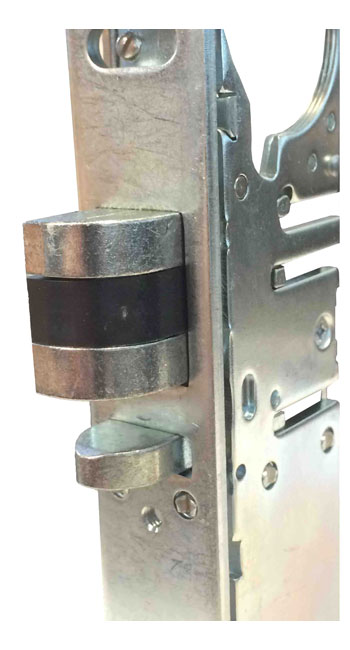

Latchbolt: 5/8" x 1" x 1/2" throw. Chrome plated zinc alloy with hardened steel internal pins. Non-handed. Can be easily reversed using simple Phillips head screwdriver.
Auxiliary Bolt: All metal. Deadlocks latch bolt. Prevents jimmying open latch bolt with knife-like objects or tools
Trim: Push/Pull Paddles and Lever Trim are shown in the generic manufacturer image but not included. Click for these Parts and Accessories.
Case: 1" x 5-13/16" x (various widths)

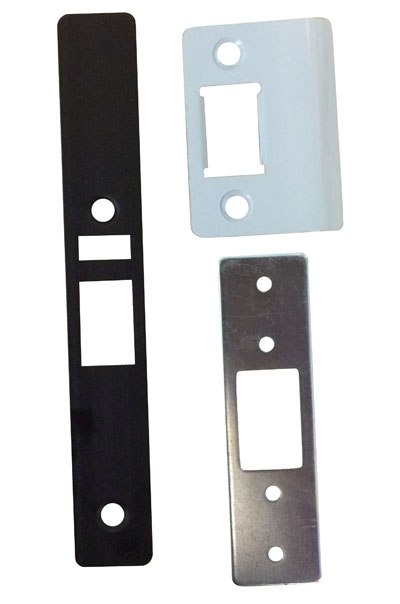

Strike: Standard strike furnished is for flat jamb where door closes flush (or nearly flush)
Bolt (Hold-Open) Feature: Latch-bolt can be fixed in “hold-open” position with the use of a mortise cylinder key, not with the use of any tools.
Finish: Duronodic
Packed: 1/Box. 25/Carton
Lock comes complete with flat face plate
