TA DH-1183LF-DU

copy to clipboard

TA DH-1183LF-DU 83" Full Surface Limited Frame Continuous Hinge - Duronodic

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
TA DH-1183LF-DU 83" Full Surface Limited Frame Continuous Hinge - Duronodic
More from Trans-Atlantico
Price: $156.54 USD
Ships From
Comments (Optional)
This item is not in stock and typically ships in 15 business days.

Trans-Atlantic has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

1-773-809-3667

Sales
Technical Support
Product Description:
transatlantico TA DH-1183LF-AL 83" Full Surface Limited Frame Continuous Hinge - Duronodic
Features
  • Standard duty for medium frequency doors.
  • Designed specifically to solve problems on existing doors and to prevent problems on new doors
  • Continuous Geared Hinges reduce stress by extending along the entire door height, eliminating any twist or sagging that can occur with traditional hinges or pivots
  • The door is also supported by 16 (standard duty) or 32 (heavy duty) patented Lubriloy bearings which further reduce friction making these hinges an excellent choice for high-traffic areas.
  • Benefits: Lifetime warranty • Increased security • Added safety from pinched fingers • Reduced sound transmission • Valuable energy savings • Eliminates warping • Asthetically pleasing appearance
Product Information
  • Gear hinge -Standard Duty - Full Surface - Limited Frame
  • Clearance: None required for hinge side.
  • Fasteners: Dril-Kwick® screws and sexbolts. Hole Count: 6 sex bolts, 24 pan heads
  • Length: 83"
  • Door Reinforcement: None required
  • Frame Reinforcement: None required to 200 lbs. Use 16 gauge channel at higher weight
  • Special Features: For surface applications where frame face dimensions is limited. Security moldings
  • Finish: Duronodic

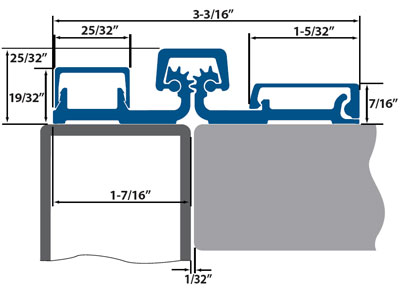

Dimension
TA DH-1183LF-AL 83
