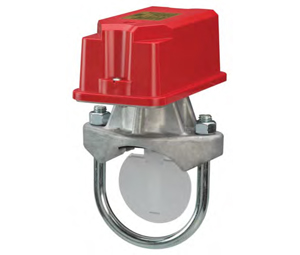

System Sensor WFDN25 Waterflow Detector - 2-1/2" Pipe Size
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
236.62 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
System Sensor WFDN25 Waterflow Detector - 2-1/2" Pipe Size
Standard Features:
The new WFDN Series waterflow detectors from System Sensor consists of a rugged, NEMA 4-rated enclosure that is more damage resistant than previous metal designs
The waterflow detector is designed for both indoor and outdoor use, with the widest available temperature range, from 32°F to 150°F
The System Sensor WFDN series is compatible with schedule 7 through 40 steel pipe, for sizes 2 in. through 4 in. and compatible with schedule 10 through 40 steel pipe, sizes 5 in. through 8 in., and can be mounted in a vertical or horizontal position
New directional cover allows installers and inspectors to easily see the direction of flow
UL-listed models are NEMA 4 rated
New cover provides a better seal, is lighter weight, not painted and corrosion resistant
Sealed retard mechanism immune to dust and other contaminants
Less exposed metal reduces shock hazard, plastic cover acts as insulator and is resistant to arcing
Visual switch activation
Audible switch activation (73 dBA)
Field-replaceable timer/switch assembly
Accommodates up to 12 AWG wire
Switch Synchronization activates both alarm panel and local bell or horn strobe
Tamper-resistant cover screws
Improved water sealing
Reduced product weight
Wire-ready terminals
Improved wiring with new terminal block layout
Snap-in optional cover tamper switch
Improved timer repeatability and accuracy
UL-listed model
Steel Water Pipe Size:
2-1/2"
Hole Size:
1-1/4"
Pipe Shedule:
7 thru 40
Max. Pressure Rating:
450
Data Sheet
Manual
(Click to Enlarge)
