Sugatsune SL38830-25

copy to clipboard

Sugatsune SL38830-25 Aluminum Folding Bracket Drop Leaf Support 121 Lbs. - 1 Each

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Sugatsune SL38830-25 Aluminum Folding Bracket Drop Leaf Support 121 Lbs. - 1 Each
Main ImageVideo Review Walter TPDL11201 Steel Spring Bracket Drop Leaf Support
More from Sugatsune Corporation
Price: $153.69 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Vernon Hills, IL Warehouse Qty: 9
For quantities beyond the "In Stock" above, the item(s) ships in 10-15 business days.

1-773-809-3667

Sales
Technical Support
Product Description:

Aluminum Folding Bracket Drop Leaf Support 121 Lbs. - 1 Each

  • Closet Dimensions (WxHxL): 3-1/32"W x 1-31/32"H x 6-5/8"L.
  • Extended Length: 10-7/8"L.
  • Weight Capacity: 121 Lbs.
  • Drop leaf support is constructed from aluminum.
  • Automatically locks when flap is in open position.
  • Has release lever for unlocking.
  • For panel thickness 19/32"- 1-3/8".
  • Maximum Width for 1 drop leaf support is 23-5/8".
  • Maximum Width for 2 drop leaf supports is 51-3/16".
  • Aluminum Material with an Anodized Aluminum Finish.
  • Installation screws not included.
  • Sold: 1 Each. Packing: Full box quantity of 5. Sold In: Both broken and full box quantities.

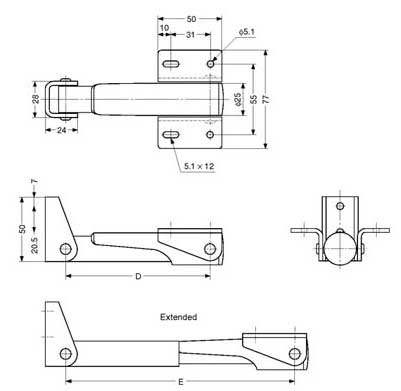

Dimensions:
Questions and Answers
Q: need installation instructions
A: The page showing the installation dimensions can be reviewed here:

Download File

Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.

Please reply to this email or contact our sales department here:

Click Here

if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
