Sugatsune America SLGS-GH5-GP

Name: Sugatsune America SLGS-GH5-GP Inset Glass Door Hinge - Gold Plated Finish - 1 Set
Brand: Sugatsune America
SKU: Sugatsune America SLGS-GH5-GP
Price: 355.44 USD

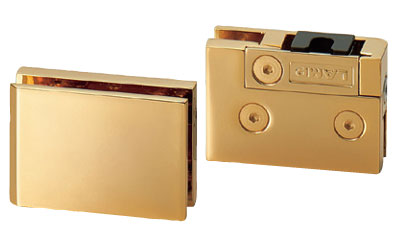

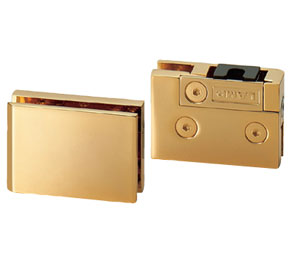

Sugatsune America SLGS-GH5-GP Inset Glass Door Hinge - Gold Plated Finish - 1 Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Sugatsune America SLGS-GH5-GP Inset Glass Door Hinge - Gold Plated Finish - 1 Set

Price: $355.44 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 10-15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Sugatsune America SLGS-GH5-GP Inset Glass Door Hinge - Gold Plated Finish - 1 Set

Inset Glass Door Hinge Set
GS-GH Series

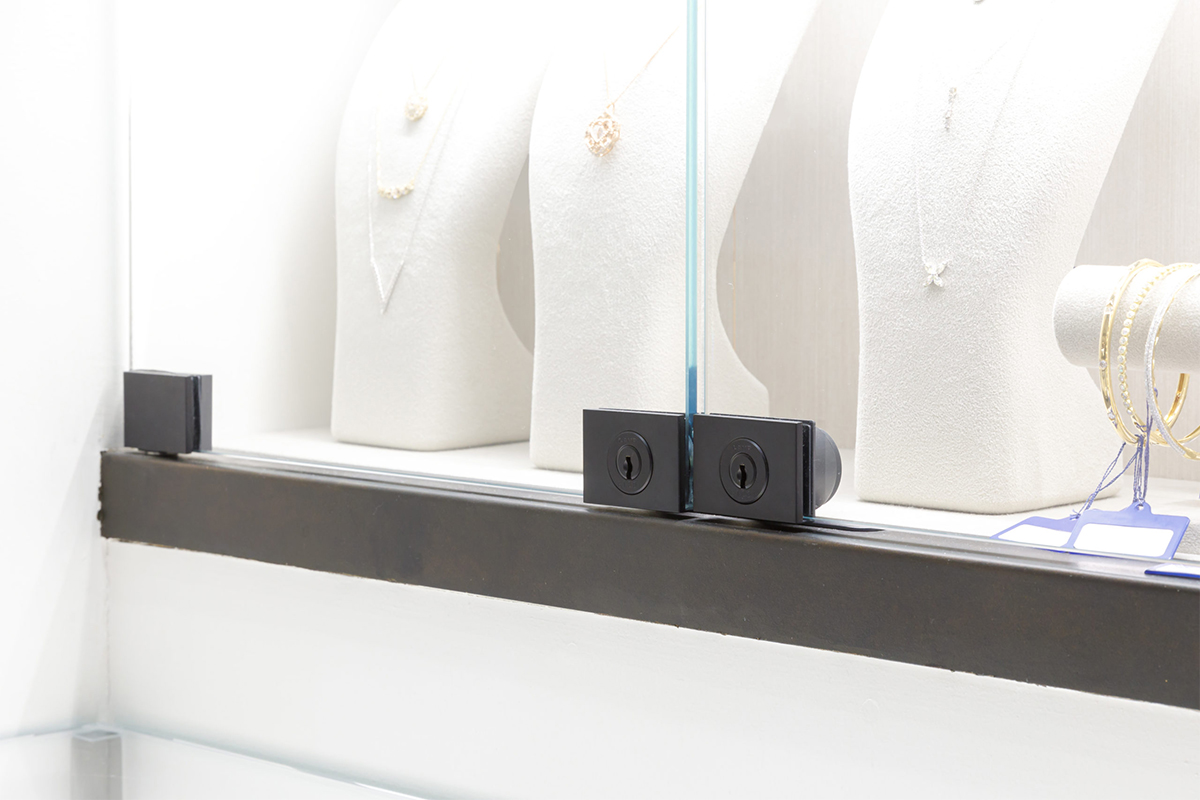

Hinge for inset glass door for glass showcase
Can be used together with glass bracket (SLGS-GB5) (below) and lock (SLGS-GL5)
Temporary holding feature allows for easy installation of the door by one person

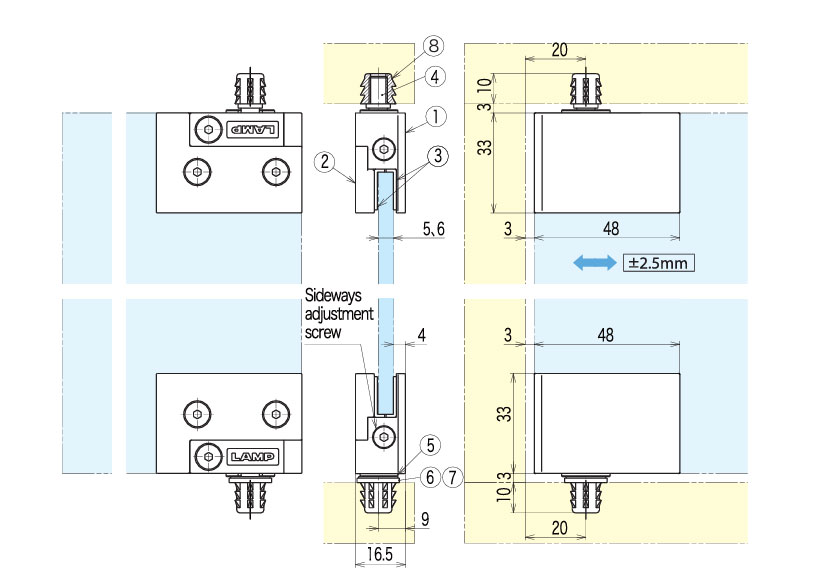

Sideways adjustment (±2.5 mm) possible after installation of the door
Gap below door is adjustable from 3 mm to 5 mm with washers
Finish: Gold Plated
Holes: 3
Length: 1-7/8"
Width: 5/8"
Height: 1-5/16"
Maximum Door Height: 23-5/8"
Maximum Door Width: 17-3/4"
Minimum Door Thickness: 3/16"
Glass Thickness: 3/16" - 1/4"
Load Capacity: 11 lb / 2 pcs
Finish: Gold Plated
MPN Code: GS-GH5-GP
Packing & Sold as: Pair.
