Stanley RD2068R 4 x 4 4

Name: Stanley RD2068R 4 x 4 4 Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 5/8" Radius Corners, Satin Brass
Brand: Stanley Door Hinges
SKU: Stanley RD2068R 4 x 4 4
Price: 10.15 USD

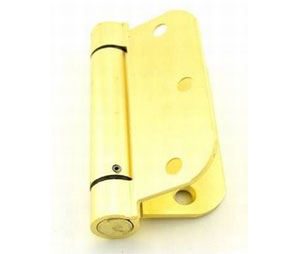

Stanley RD2068R 4 x 4 4 Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 5/8" Radius Corners, Satin Brass

× This image is for a similar product but it will differ in size, color and/or other attributes.

Stanley RD2068R 4 x 4 4 Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 5/8" Radius Corners, Satin Brass

Video Review Stanley RD2068R 3 1/2" x 3 1/2" 10BL 5/8" RAD Spring Hinge

Price: $10.15 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Stanley RD2068R 4 x 4 4 Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 5/8" Radius Corners, Satin Brass

Full Mortise Spring Hinge
5/8" Radius Corners
Size Open: 4" x 4"
Gauge of Metal: .099
Base Material: Steel
Finish:
4" (102mm) size – approved for door up to 3' x 7' (914 x 2134mm)
Use for labeled fire doors, stairwell doors, motel and hotel guest room doors, apartment unit entrance doors
Automatically closes doors – an alternative to overhead mounted door closers
Flat Head Screws (per Piece):

Machine: 8-12-24 x 1/2 with #9 head
Wood: 8-9 x 1

Patented ratchet adjustment eliminates need for adjustment locking pin
Conforms to ANSI/BHMA standard A156.17, Grade 1
Meets NFPA80 standard for 3 hour fire doors (NFPA-80 stipulates minimum of 2 spring hinges shall be used on labeled doors)
Limited lifetime warranty for the life of the building
Unit of measure: Each

Product Catalog

Template

Instructions

Usage and
Selection Guide

Maintanance Instructions

Video Review of Stanley RD2068R 3 1/2" x 3 1/2" 10BL 5/8" RAD Spring Hinge

Video Detail Page

Questions and Answers

Q: how do I back the tension off when the hinge is not on the door

A: A link to the installation instructions can be reviewed here:

Download File

and specifically you are looking at figure 2 which is a combination of both inserting the ranch and depressing it in a downward motion while permitting it to release in a counter-clockwise fashion assuming the tension collar is pointed towards the top of the door.

I also demonstrate the procedure in the video as seen here: Click Here

Q: Thanks for the help. It appears mine has been installed for a while and I needed to employ a little convincing ?? to allow me to push down with the Allen wrench.

A: That's what we call in Chicago the "Killer Kowalski" (famous professional wrestler).
