Stanley RD2060R 4 x 4 ST4C

Name: Stanley RD2060R 4 x 4 ST4C Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 1/4" Radius Corners, Zinc Plated Satin Brass Tone
Brand: Stanley Door Hinges
SKU: Stanley RD2060R 4 x 4 ST4C
Price: 16.45 USD

Stanley RD2060R 4 x 4 ST4C Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 1/4" Radius Corners, Zinc Plated Satin Brass Tone

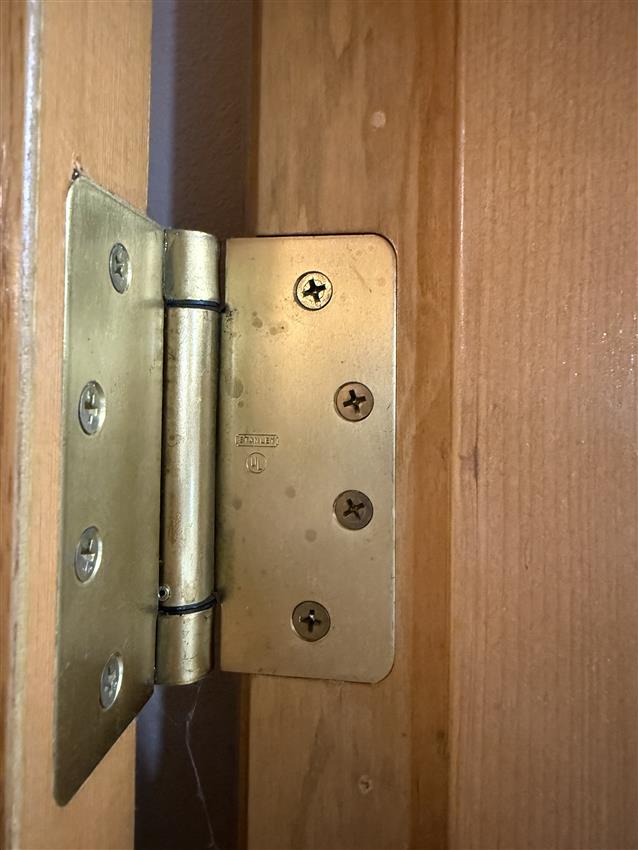

× This image is for a similar product but it will differ in size, color and/or other attributes.

Stanley RD2060R 4 x 4 ST4C Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 1/4" Radius Corners, Zinc Plated Satin Brass Tone

Price: $16.45 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Stanley RD2060R 4 x 4 ST4C Single Acting, Full Mortise, Standard Weight Spring Hinge - 4" x 4", 1/4" Radius Corners, Zinc Plated Satin Brass Tone

Full Mortise Spring Hinge
1/4" Radius Corners
Size Open: 4" x 4"
Gauge of Metal: .099
Base Material: Steel
Finish: Zinc Plated Satin Brass Tone (ST4C/604)
4" (102mm) size – approved for door up to 3' x 7' (914 x 2134mm)
Use for labeled fire doors, stairwell doors, motel and hotel guest room doors, apartment unit entrance doors
Automatically closes doors – an alternative to overhead mounted door closers
Flat Head Screws (per Piece):

Machine: 8-12-24 x 1/2 with #9 head
Wood: 8-9 x 1

Patented ratchet adjustment eliminates need for adjustment locking pin
Conforms to ANSI/BHMA standard A156.17, Grade 1
Meets NFPA80 standard for 3 hour fire doors (NFPA-80 stipulates minimum of 2 spring hinges shall be used on labeled doors)
Limited lifetime warranty for the life of the building
Unit of measure: Each
