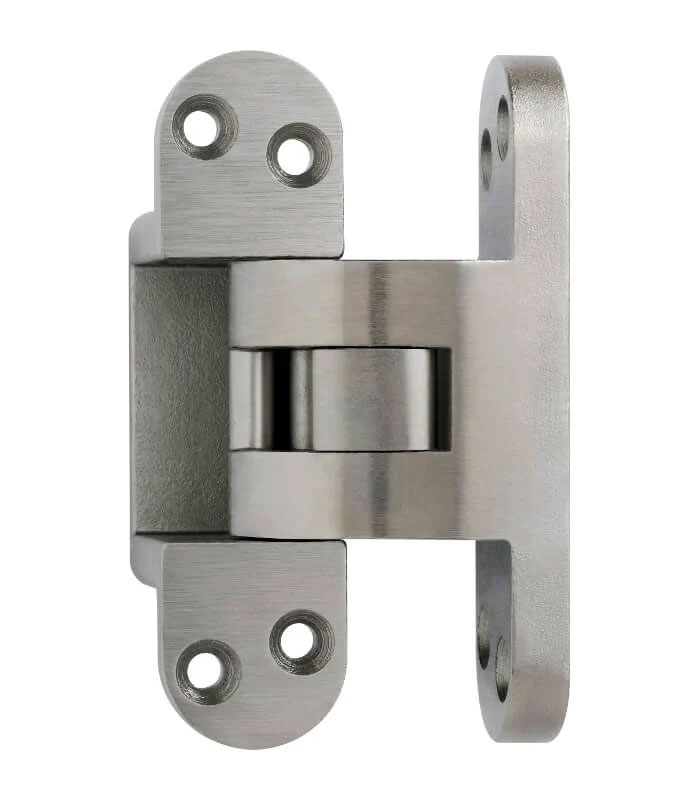

Soss 518US26D

SOSS® Invisible Hinge model #518 is for use in wood or metal applications that are a minimum of 1-3/4". The model #518 is made of alloy steel materials. Solid alloy steel links add extra strength and durability. This full size door style hinge is unique as it allows the door to wrap around applied molding or trim. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. This is the only SOSS® Invisible Hinges that opens to only 92°.

A 1-1/4″ (31.75mm); B 23/64″ (9.13mm); C 4-5/8″ (116.28mm);
D 51/64 (20.24mm); E 1/4″ (6.35mm); F 2-39/64″ (66.28mm);
G 5/64″ (1.98mm); H 1-29/32″ (48.42mm); I 21/64″ (8.33mm);
