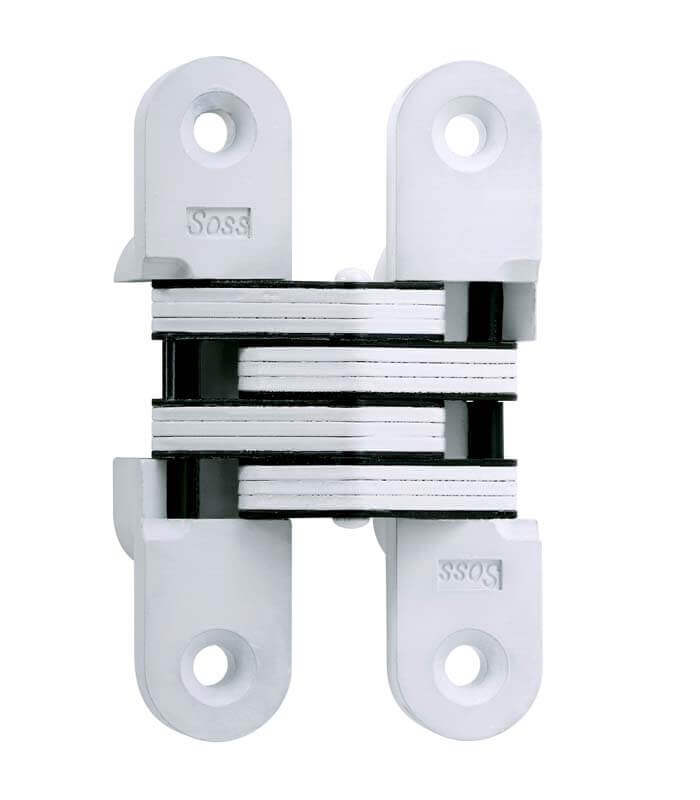

SOSS 216WHB

SOSS® Invisible Hinge model #216 is for use in wood or metal applications that are 1-3/8" to 1-3/4" thick.The model #216 is made of zinc and steel materials.This full size door style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

• Model 216 Invisible Hinge
• Full Sized Entry, Metal, Wood Applications
• Finish: White E-Coated
• Minimum Material Thickness: 1-3/8" (34.93mm)
• Wood Screw Size: #14×1-1/2" (6.3x38mm)
• Soft Wood Pilot Hole: No. 32
• Hard Wood Pilot Hole: No 10
• Machine Screw Size: #1/4-20×1"
• A dimension (check image below): 1" (25.40mm)
• B dimension (check image below): 47/64" (18.65mm)
• C dimension (check image below): 4-5/8" (117.48mm)
• D dimension (check image below): 15/64" (5.95mm)
• E dimension (check image below): 1/4" (6.35mm)
• F dimension (check image below): 2-19/32" (65.88mm)
• G dimension (check image below): 1/16" (1.59mm)
• H dimension (check image below): 1-15/32" (37.31mm)
• I dimension (check image below): 15/32" (11.91mm)
• Hinge Weight: 1.65 lb.
• Wood and Machine screws are included.
• Unit of measure is Box of 100. Each box contains 100 pieces bulk.
