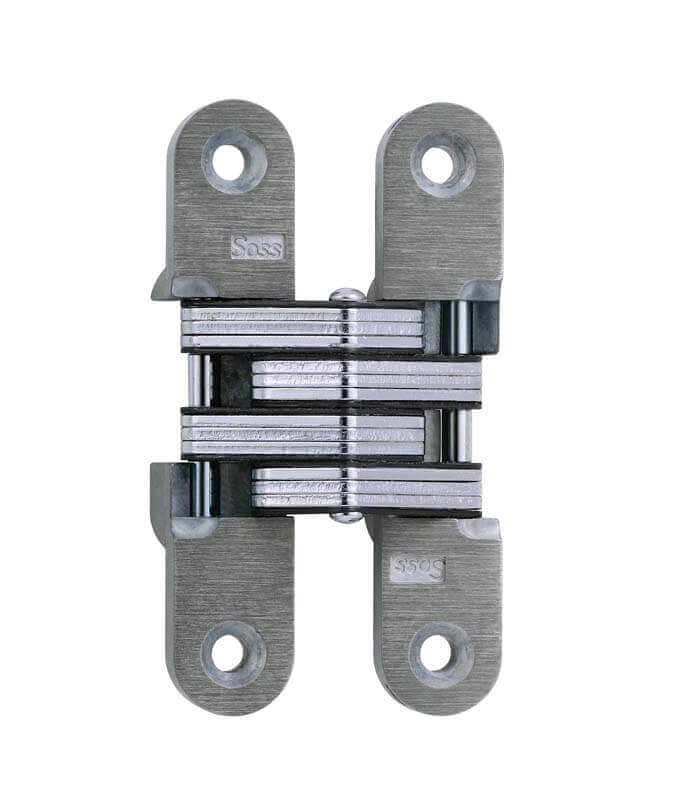

SOSS 212UNPB

SOSS® Invisible Hinge model #212 is for use in wood or metal applications that are 1-1/8" to 1-3/8" thick. The model #212 is made of zinc and steel materials. Nylon links provide strength and durability. This mid-range door hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

• Model 212 Invisible Hinge
• Metal, Wood Applications
• Finish: Unplated
• Minimum Material Thickness: 1-1/8" (28.58mm)
• Wood Screw Size: #10×1-1/4" (4.8x32mm)
• Soft Wood Pilot Hole: No. 43
• Hard Wood Pilot Hole: No 31
• Machine Screw Size: #10-24×3/4"
• A dimension (check image below): 3/4" (19.05mm)
• B dimension (check image below): 35/64" (13.49mm)
• C dimension (check image below): 3-3/4" (95.25mm)
• D dimension (check image below): 11/64" (4.37mm)
• E dimension (check image below): 3/16" (4.76mm)
• F dimension (check image below): 2-1/16" (52.39mm)
• G dimension (check image below): 3/64" (1.19mm)
• H dimension (check image below): 1-5/64" (27.38mm)
• I dimension (check image below): 3/8" (9.53mm)
• Hinge Weight: .75 lb.
• Wood screws are included. Machine screws are NOT INCLUDED.
• Unit of measure is Box of 100. Each box contains 100 pieces bulk.
