SOSS 106US4B

SOSS® Invisible Hinge model #106 is for use in metal applications. This cabinet style hinge will provide superior apperance and durability. This special concealed surface mount SOSS® Invisible Hinge mounts on back of door and frame and requires no mortise. Hinge is visible from the back. The maximum door thickness is 5/64".

• Model 106 Concealed Surface Mount Invisible Hinge
• Cabinet, Metal Applications

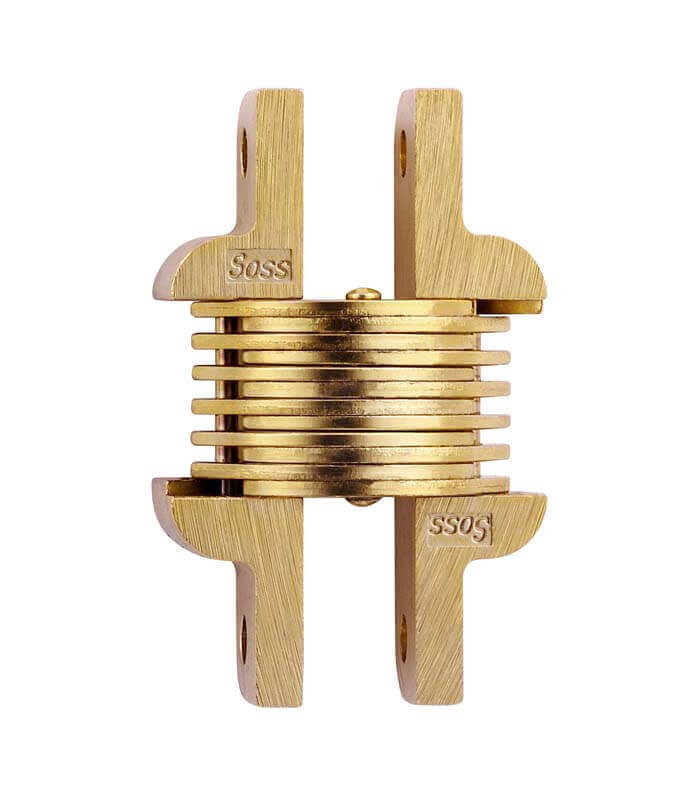

• Finish: Satin Brass

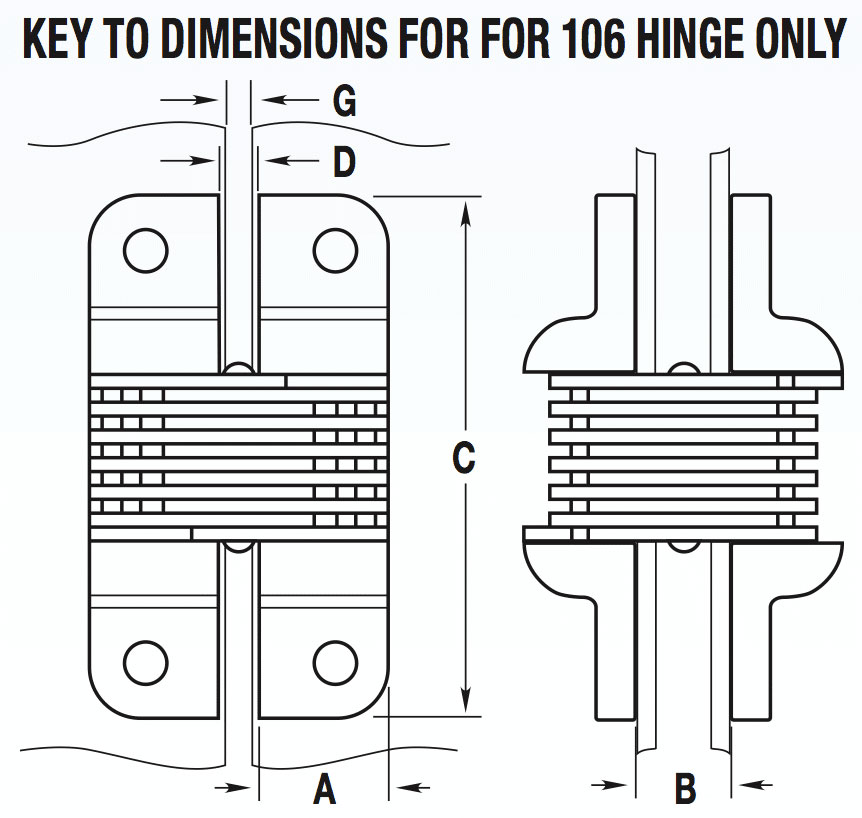

• A dimension (check image below): 19/32"(15.08mm)
• B dimension (check image below): 7/16"(11.11mm)
• C dimension (check image below): 2-3/8"(60.33mm)
• D dimension (check image below): 13/64"(5.16mm)
• G dimension (check image below): 19/32" (15.08mm)
• Hinge Weight: .18 lb.
• Screws are NOT INCLUDED.
• Unit of measure is Box of 100. Each box contains 100 pieces bulk.
