Q: Does an ND50 or ND53 unlock when closing the door?
A: Both the ND50 and ND53 will not unlock when the door is shut. The only way to pop the button is by turning the key on the outside or the lever on the inside.

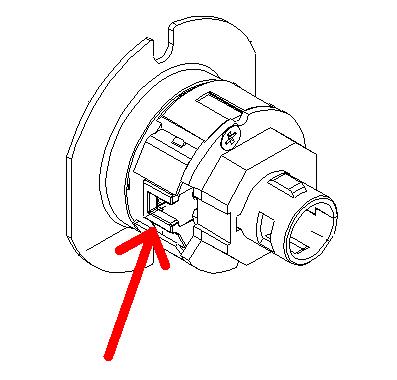

Occasionally customers will complain that the button does pop out when the latch is depressed. A common mistake is that they test the lock out of the door and depress the slide (see figure below), thinking that they are simulating the door shutting- when in fact they are simulating the inside lever turning.
Chassis image as seen here:
View Image
The proper way to test is to install a latch on the chassis and depress the latchbolt.
Q: How is the Schlage ND lock installed?
A: Select the appropriate installation instructions below for step-by-step guidance on how to install a Schlage ND lock.
ND-Series Installation Instructions (locks manufactured after 01-31-2017) as seen here:Download File
ND-Series Installation Instructions (locks manufactured prior to 01-31-2017) as seen here:Download File
ND25 Installation Instructions as seen here:Download File
ND170 Installation Instructions
as seen here:Download File
Q: Is the latch sold separate on the ND series?
A: Latches are sold separately, see current Pricebook for part numbers.
Q: Will Schlage locks with a BD suffix accept a BEST SFIC core?
A: The Schlage B and BD cylinder suffixes designate less small format interchangeable core (SFIC) cylinder prep for the lock. Any SFIC, 6-pin or 7-pin, can be inserted into the lock and will operate the lock as long as the appropriate Schlage tailpiece/cam is used and, if applicable, the correct amount of spacers.
Q: What type of switch is used for the RX and latch monitoring options for the ND and L locks?
A: The ND-Series RX, the L-Series RX and latch monitoring switches are Form C - Single Pole Double Throw (also known as SPDT).
Q: What are the part numbers for the ND lock spring cages?
A: ND -series locks manufactured on or after January 30, 2017 use the following spring cages:
Outside - N523-218 - For ALL cylinder options except for JD-YA6, JD-YA7 and JD-MED
Inside - N523-222 - For ALL cylinder and non-cylinder options except for JD-YA6, JD-YA7 and JD-MED
For JD-YA6, JD-YA7 and JD-MED cylinder options:
Outside - N523-224
Inside - N523-225 Q: Will a Medeco key-in-lever cylinder fit into an ND lock?
A: Medeco does offer a key-in-lever cylinder to fit the Schlage ND (cylinders for others peoples locks is how they obtain/maintain such a giant portion of market share)
You will need to contact Medeco for the cylinder.
Specify a key-in-lever cylinder to fit the Schlage ND lock.
They will supply a cylinder with the correct tailpiece to be used with the Schlage ND lock.
Specify from Schlage the ND lock as "LD", less cylinder. i.e. ND80LD
