Q: Do you have a drill template for the Stanley Grade 1 lever locksets?
A: Indeed we do and here it is:
Click Here
Is there a follow up question that we can perhaps attempt to answer? We take pride in our technical expertise so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: how many cycles is a grade 1 leverset good for
A: Many ANSI/BHMA standards set forth different product grades for a particular hardware item. These product grades (grade 1, 2, or 3 -- with grade 1 being the highest) are defined by progressive levels of performance benchmarks in each applicable ANSI/BHMA standard. The grade of any particular architectural hardware item also can be ascertained by looking at its BHMA product number. This standardized BHMA numbering system also delineates other important classification information, such as the predominant material used, product category, and function of a specific hardware item.
Grade 1 locks must pass a
rigorous test through one
million cycles of opening and
closing with a 10 pound axial
load applied.*
Is there a follow up question that we can perhaps attempt to answer? We take pride deep in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
* Download File
Q: do you ship to canada winnipeg manitoba?
A: Yes - we ship internationally everyday -
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: Will this template also work for the Falcon T511 lockset? And if so, what is the life cycle (how many doors can be drilled before replacement)?
A: The M204-198 will indeed also work for the Falcon T locks.
This is confirmed by reviewing and comparing the Schlage AL or ND lock templates, for instance as seen on page AL888 here:
Download File
and the Falcon T series template as seen here:
Download File
Regarding the life cycle that is exclusively determined by the user. I have personally drilled hundreds of doors with one template but have seen others ruin the tool in less that 20 - doors.
Please feel free to reach out to our sales department at the link mentioned below to process an order or request a quote.
Is there a follow up question that we can perhaps attempt to answer? We take deep pride in our technical expertise, as we know it separates us from our competition, so don't hesitate to ask.
Please reply to this email or contact our sales department here:
Click Here
if we can assist you by answering further questions or with entering this order and please let us know if there is anything else we can help with.
Q: Will this work with Cal Royal grade 1 locks?

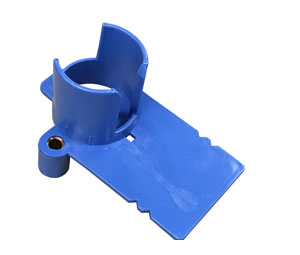

A: Yes - the Schlage M204-198 Boring Jig for AL, D or ND-Series Levers, a typical template as seen here:
Download File
will indeed work with the Cal-Royal Grade 1 locks such as the Genesys Series and an example template can be viewed here:
Download File
and then of course compared to the Schlage template above.
Q: Does this come in a metal version?
A: From Schlage no, it does not exist - however I'm very proud to represent Major Manufacturing as seen here:
Click Here
Major makes a staggering assortment of hardware installation tools. I would recommend the
Major HIT-111 Drill Guide for Schlage, Corbin, Arrow & General Cylindrical Grade 1
as seen here:
Click Here
as it will give you other lock platforms that I can prep as well.
It would suggest that you review the full-line catalog as seen here:
Download File
you will find the second half of the catalog contains the hardware installation tools.
Q: Will this work for Arrow MLX81?
A: Yes, this will work. After comparing the templates for the Arrow MLX81 and the M204-198, we can see that the center line dimension is the same.
