Schlage Electronics 653-1515 SF-625
Schlage Electronics 653-1515 SF-625

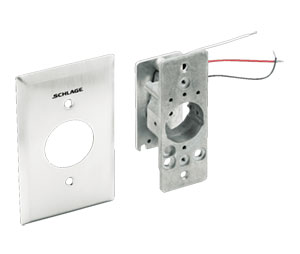

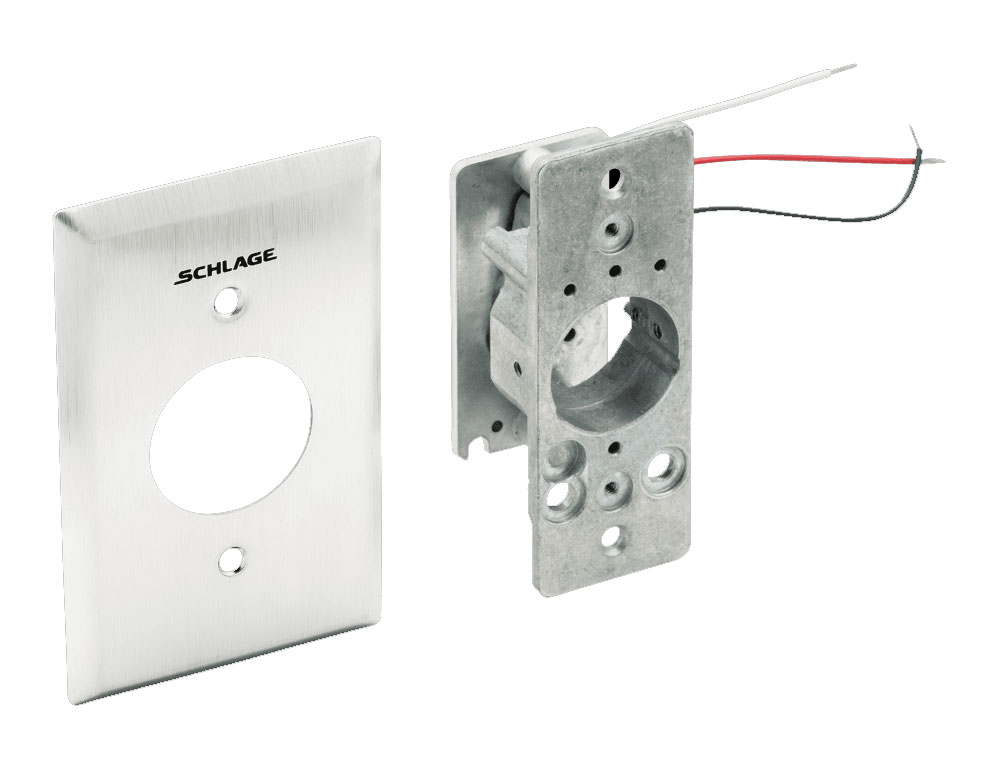

Schlage Electronics 653-1515 SF-625 (2) DPDT Momentary Bi-Direction Key Switch, Less Cylinder, Polished Chrome
×
This image is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
678.05 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Schlage Electronics 653-1515 SF-625 (2) DPDT Momentary Bi-Direction Key Switch, Less Cylinder, Polished Chrome
Key Switch
(2) DPDT Momentary Bi-Direction
Less Cylinder
Patented magnetic spring design
Operating Voltage: 12 / 24 VDC
Finish: Polished Chrome
Easy to install and maintain
Single gang and narrow stile offer ultimate flexibility
Patented magnetic spring design allows installers to configure momentary to maintained action in seconds
UL 294 Listed
Note:
650 Series keyswitches operate with either a 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinder having a straight type cam
1-1/8" mortise cylinder fits direct in key switch - no blocking ring required
1-1/4" cylinders require a 1/8" blocking/spacer ring, Schlage part number 36-079-012 or equivalent (included with the CYL and CYL-KA options)
1-3/8" mortise cylinder housing for SFIC cores - requires 1/4" blocking ring Schlage part number 36-079-025 or equivalent
1-1/2" mortise cylinder housing for FSIC cores - requires 3/8" blocking ring Schlage part number 36-079-037 or equivalent
All cylinders, except 1-1/4" as CYL or CYL-KA options, must be ordered separately
Sell Sheet
Instructions
