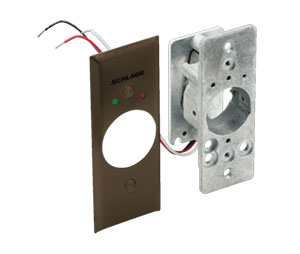

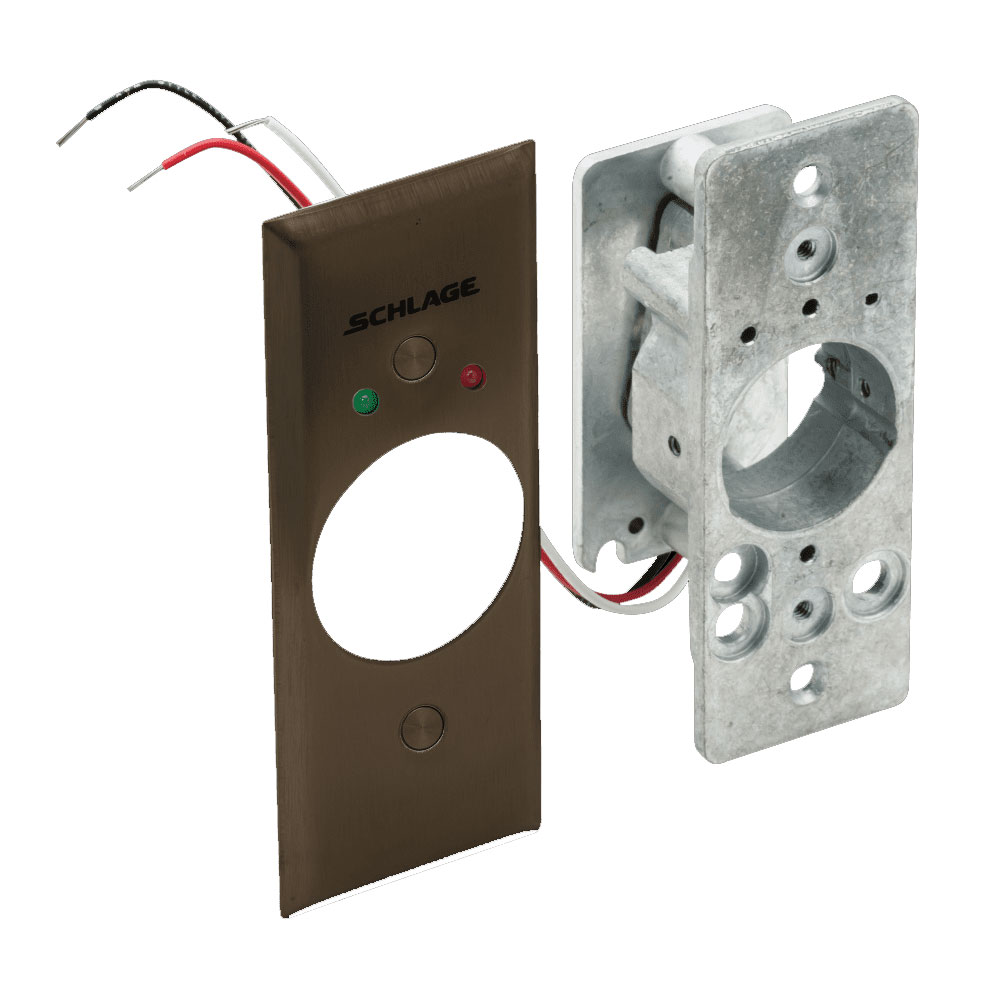

Schlage Electronics 653-04 L2 NS ATS SF-613

• Key Switch
• SPDT Maintained Single Direction
• Less Cylinder
• Two LEDs (red/green), dual voltage
• LED indicator lights operate at 12/24 VDC 0.500A @ 30VDC
• Anti-Tamper Switch
• ATS switch closes when cover is on 0.025A@28VDC
• Narrow Style
• Patented magnetic spring design
• Operating Voltage: 12 / 24 VDC
• Finish: Oil Rubbed Bronze
• Easy to install and maintain
• Single gang and narrow stile offer ultimate flexibility
• Patented magnetic spring design allows installers to configure momentary to maintained action in seconds
• UL 294 Listed

Note:

• 650 Series keyswitches operate with either a 1-1/8", 1-1/4", 1-3/8", or 1-1/2" cylinder having a straight type cam
• 1-1/8" mortise cylinder fits direct in key switch - no blocking ring required
• 1-1/4" cylinders require a 1/8" blocking/spacer ring, Schlage part number 36-079-012 or equivalent (included with the CYL and CYL-KA options)
• 1-3/8" mortise cylinder housing for SFIC cores - requires 1/4" blocking ring Schlage part number 36-079-025 or equivalent
• 1-1/2" mortise cylinder housing for FSIC cores - requires 3/8" blocking ring Schlage part number 36-079-037 or equivalent
• All cylinders, except 1-1/4" as CYL or CYL-KA options, must be ordered separately
