6500 K

Name: Sargent Lock 6500 Line Keyed Lever
Brand: Sargent
SKU: 6500 K
Price: 236.08 USD

Sargent Lock 6500 Line Keyed Lever

× This image is for a similar product but it will differ in size, color and/or other attributes.

Price: $236.08 USD

Volume Price Information

Buy 12 or more and pay $224.28 each (save 5.00%)

Buy 36 or more and pay $212.47 each (save 10.0%)

Buy 72 or more and pay $200.67 each (save 15.00%)

8 - Insert keying instructions below: (Optional)

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 1 business day.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Sargent Lock 6500 Line Cylindrical Lever Keyed Functions
SARGENT	ANSI	Function Description
04	F86	04: Storeroom or Service
		Guardbolt deadlocks latchbolt. Latchbolt by knob/lever or key outside. Outside knob/lever rigid at all times.
05	F81	05: Entrance/Office
		Guardbolt deadlocks latchbolt. Latchbolt by either knob/lever unless outside knob/lever is locked by push-turn button in inside knob/lever. Turn button must be released manually. Key retracts latchbolt when outside knob/lever is locked.
37	F84	37: Classroom
		Guardbolt deadlocks latchbolt. Latchbolt by either lever unless outside lever is locked by key. Key in outside lever locks or unlocks outside lever. Inside lever always operative.

Available Finishes

Available Trims:

	03 Bright Brass, Clear Coated (BHMA 605)
	10 Satin Bronze, Clear Coated (BHMA 612)
	10B Dark Oxidized Satin Bronze, Oil Rubbed (BHMA 613)
	26D Satin Chromium Plated (BHMA 626)


K Rose, L Lever
The 6500 Lever Lockset is only available in KL design and split finishes are not available.

The Sargent 6500 Line is a standard duty key-in-lever lockset designed to exceed the requirements of ANSI A156.2 Series 4000 and Grade 2.

	Light to Medium commercial
	Offices
	Apartments
	Hotels / Motels

DOCUMENTATION

Templates		6500 Line (All Functions and Prefixes) - 4430B.pdf
		600 for ANSI 115.3 - Standard - 3911N.pdf
		808 Strike for ANSI 115.2 - 28 Prefix - 4049W.pdf
Instruction Sheets		Instructions for installing 6500 Line Single & Double Lever Pull - A6913E.pdf

Features and Benefits

For doors 1 3/8" to 1 3/4" only
Backset is 2 3/4" standard. 2 3/8" optional
Cylindrical housing is steel zinc dichromate finish
Front is brass, stainless steel; 2 1/4" x 1 1/8", standard with 2 3/4" backset
Strike is standard curved lip, No. 600, NSI A115.2, brass or stainless steel. Can be furnished with No. 808 or No. 505 strike
Universal, not handed

Brass latchbolt with 1/2" throw. UL/cUL listed

Two nickel silver keys

Brass, 6 pin cylinder, LA keyway standard. Can be masterkeyed with any SARGENT lock

Prefixes: for detailed information, see "Functions" page of catalog

UL/cUL listed for use on fire doors. UL-F78E5

Top of page

Questions and Answers

Q: So this guy called and has some of these locks with a button in the attached photos. They want to get a lever with a different type of lock on it because he says that every time they go out the door, it locks on them. These look super cheap and they say Advantage. Says their contractor isn't being of any assistance to them and is looking for help... Would this require that they change the entire lockset out to something different, ya think? Not real sure if we can even help this guy or what I even should ask for..?

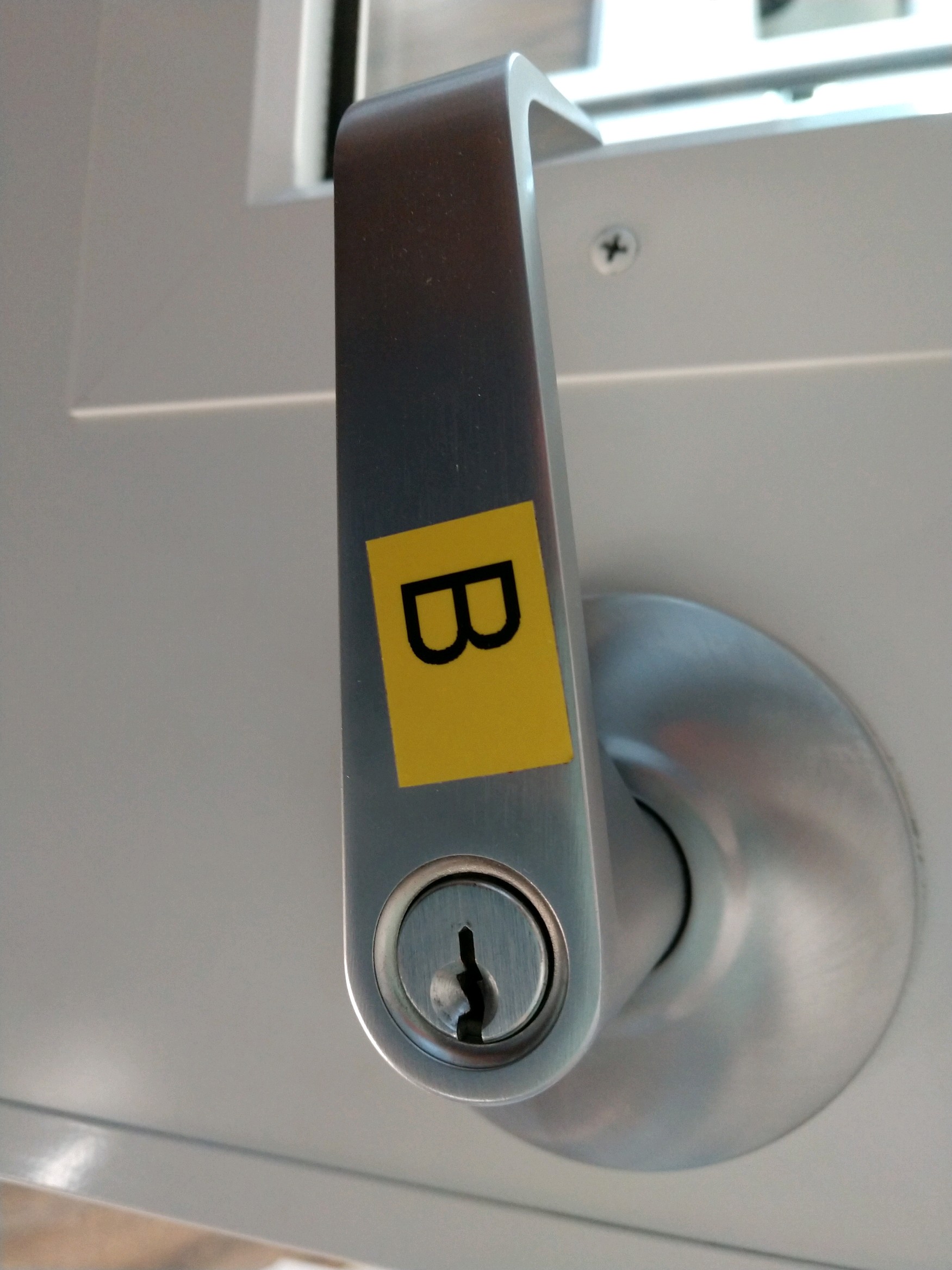

photos as seen here:

View Image

"we need them to turn and lock only not push in and lock. If anybody just bumps it they will lock automatically"

A: that is an entrance function meaning it can always be left in the unlocked position and if it's locking on them when they go out the door then they were intentionally locking it behind them.

I would ask them to explain how it is that the door is locking on them when the button shown in the attached image is clearly in the unlocked position.

Understanding the actual problem - the client would be best served by simply installing a wall stop such as the item as seen here :

Click Here

The hole that is in that concave. is specifically intended to receive the push button so to prevent the automatic unintentional relocking of the door If a wall shop is not an option but we can certainly sell them keyed locks that will only have a button that turns and does not push and I would calculate about $20 each for those
