Roton 500-048-CL-072
Roton 500-048-CL-072
Roton 500-048-CL-072 72" Continuous Hinge-Concealed-Light Duty-Clear Finish
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
111.86 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
72" Light Duty Concealed Hinge - Clear Aluminum Finish
Universal hinge used for a wide variety of applications including marine applications, wood cabinet construction, medical equipment, portable exhibits and displays, electronic cabinets, switchboxes, etc.
Length: 72"
Material: Aluminum 6063-T6 - 1/16" (1.5 mm) leaf thickness
Clearance: 5/16" (8mm)
Bearings spaced to distribute door weight evenly up to 50 lbs.
Can be used for vertical or horizontal applications
Door edge protection lip
Offset joint to clear casing
Alignment ribs for easy installation and proper hinge location
Fasteners (Included): #8-18 x 3/4" Truss Head Phillips Tapping AB Zinc plated Steel. Painted to match. For sheet metal or wood applications.
Field Modifications: While Roton Continuous Geared Hinges can be field cut, any product modifications may void all warranties. Should in-the-field modifications be required, cut only from bottom of hinge. Do not cut through bearings or screw holes.
Template

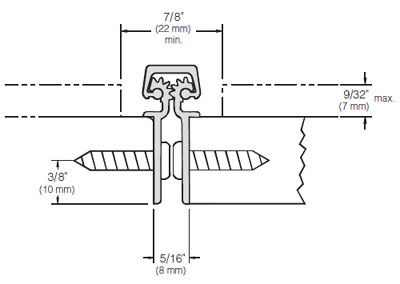

Dimensions
Options (Call for Pricing and Lead Time)
Custom Lengths
Extra Long Hinges
Special Anodizing and Painting:
Because of special non-removable metal coatings applied to all hinges during assembly, users are cautioned against attempting to refinish any Roton product.
Special Cover Channels
Dutch Door Hinges
Bearing at Top
Bearing on Bottom
Hospital Tip
Tamper Resistant Hinge
Special Holes
Electrical Hinge Modifications
Questions and Answers
Q: Can this hinge stand up to the daily use with a heavy metal door or is there another heavy duty hinge option
A:
How heavy, wide and tall is the use. How many cycles per day will the door be used?
