Rockwood SP1027

Name: Rockwood SP1027 1/4 - 20 Cone Head Union
Brand: Rockwood
SKU: Rockwood SP1027
Price: 3.3 USD

Rockwood SP1027 1/4 - 20 Cone Head Union

× This image is for a similar product but it will differ in size, color and/or other attributes.

Rockwood SP1027 1/4 - 20 Cone Head Union

Price: $3.30 USD

Comments (Optional)

ADD TO CART

In Stock (No Minimums):

Naples, FL Warehouse Qty: 6

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Rockwood SP1027 1/4 - 20 Cone Head Union

1/4 - 20 Cone Head Union
Use to Convert Double Cone Head to thru Bolt Hole
For Back to Back Mounting - For 1-3/4" Wood and Metal Doors

Product Catalog

FASTENERS - SPARE PARTS
Back to Back Mounting - For 1-3/4" Wood and Metal Doors

Images	Part # & Finishes	Description	Mounting Type	Video Review
	SP1025	1⁄4 "-20 x 2 1⁄4" Cone Head Machine Screw	5	SP1025 SP1025 custom length
	SP1056	5⁄16 "-18 x 2 1⁄4" Cone Head Machine Screw	5HD	SP1056
	SP1052	1⁄4 "-20 x 2 1⁄4" Double Cone Head Machine Screw (for use with offset pulls)	16	SP1052
	SP1057	5⁄16 "-18 x 2 1⁄4" Double Cone Head Machine Screw (for use with offset pulls)	16HD	SP1057
	SP1027	1⁄4 "-20 Cone Head Union (used to Convert Cone Head to Thru Bolt Hole)	N/A	SP1027
	SP1079	1⁄4 "-20 Double Cone Head Union (used to Convert Double Cone Head to Thru Bolt Hole)	N/A	SP1079
	SP1068	5⁄16 "-18 Cone Head Union (used to Convert Cone Head to Thru Bolt Hole)	N/A	SP1068
	SP1026	1⁄4 "-20 x 5⁄16 " Set Screws (Standard)	N/A	SP1026
	SP1065	1⁄4 "-20 x 3⁄16" Set Screw (Short)	N/A	-
	SP1032	3⁄8"-16 x 2 7⁄8" LH/RH Bolt	11	-
	SP1071	Spanner Collar 1" Diameter for LH/RH Bolt	11	-
	SP1033	Spanner Collar 1 1⁄4 " Diameter for LH/RH Bolt	11	-
	SP1072	Spanner Collar 1 1⁄2" Diameter for LH/RH Bolt	11	-
For Rockwood Mounting Kit Parts Master Table CLICK HERE:

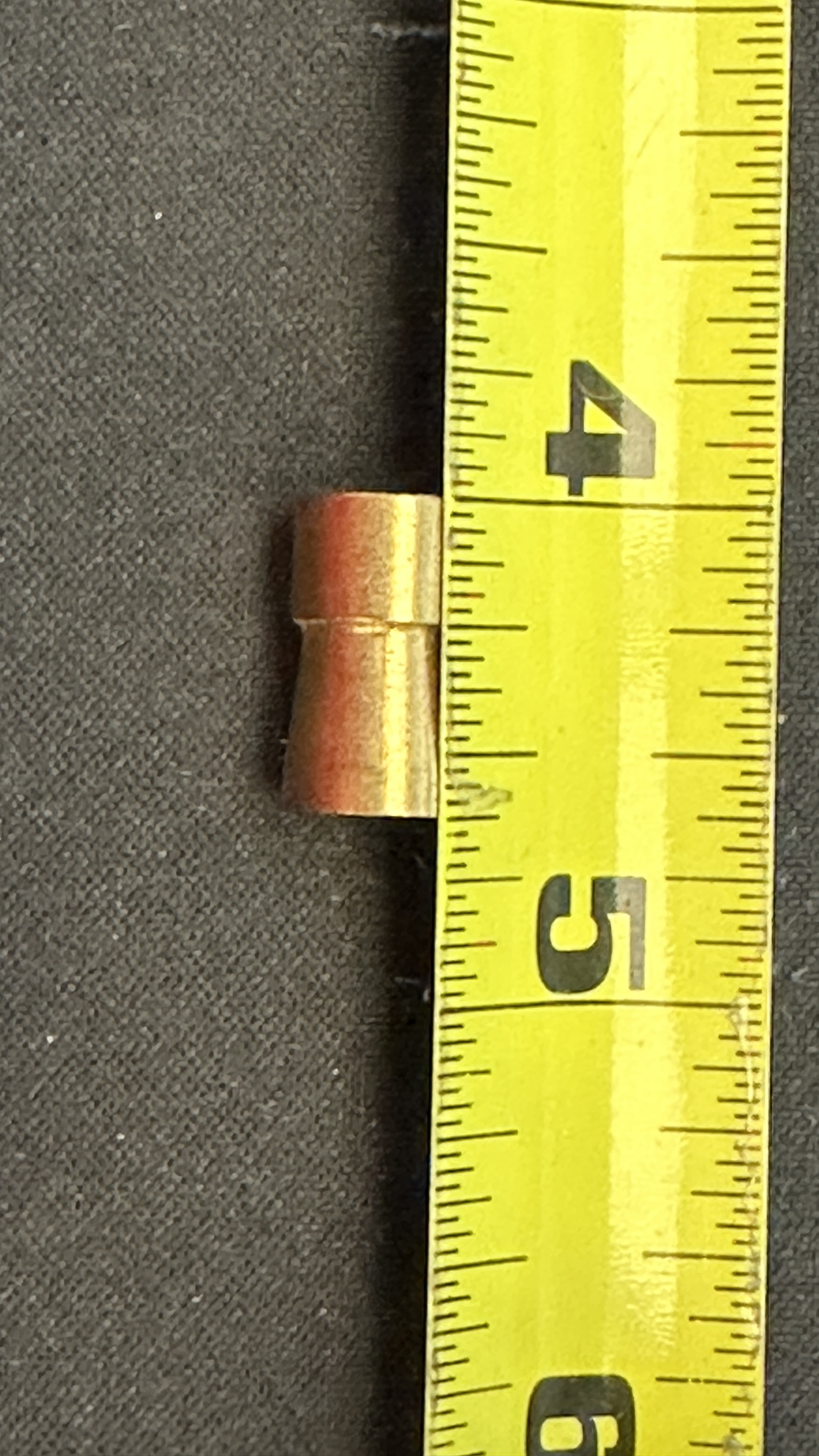

Customer Supplied Photo

(Click to Enlarge)

Video Detail Page

Questions and Answers

Q: What is the outside diameter of this part? Since it works with a 1/4-20 bolt, shouldnt it be a bit larger than 1/4 inch as per your video? Specifically the Outside diameter of the Barrel portion. My image is here regarding the dimension I need:

View Image

Thank you in advance!

A: The OD of that part of the Rockwood SP1027 1/4 - 20 Cone Head Union is .372"
