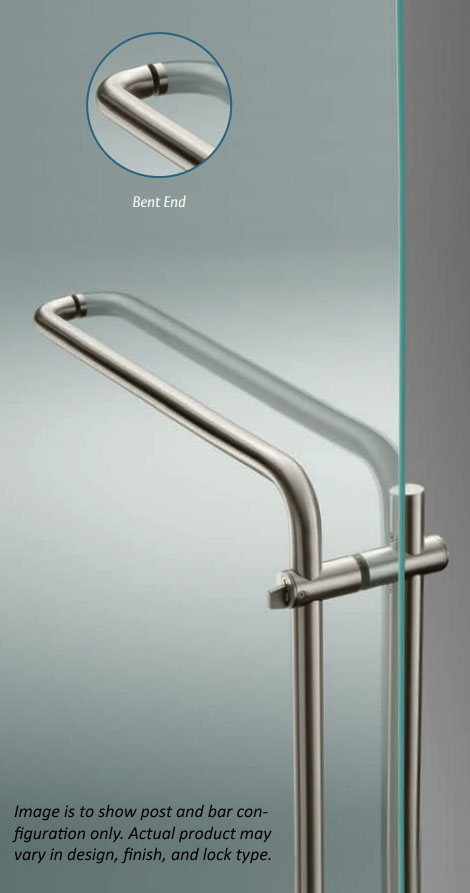

The Rockwood Locking Pull System is a simple, durable and beautiful design for swinging and sliding doors. Integrating a contemporary PostMount or GeoMetek style door pull with a deadbolt locking system, it's manufactured to ensure strength and durability with clean and appealing lines.
Specifications - Inlcudes: one "L" shaped push-pull bar and one Half Height pull bar
- Pull style: PostMount
- Bolts Down
- Bent End Cylinder Side - Mating Side Vertica
- Grip size: 1-1/4" Diameter
- Projection: 2-5/8"
- Clearance: 1-3/8"
- Finish: Satin Brass
Features: - Horizontal Push/Pull Bars Keep glass clean and free of hand prints
- Provides greater push/pull area while maintaining a clean aesthetic
- Simple door preparation allows for faster installation
- These Locking Pulls are always sold as sets, when you buy a set of them mount it back to back
- Mounting: Type 5HD for wood or metal doors or Type 13HD for glass doors
- These are the two mounting types that the mounting is based off of. Your exact mounting requirements are determined by the door type and door thickness.
- It is important that the mounting type has to be correct at the very first time. No field modifications of this material are available for switching door type or door thickness. In the event a change needing to be made to a set of locking pulls after manufacturing, involves sending the set of pulls back to the factory to be re-manufactured.
- Key operated from outside, turn piece on inside
- Multiple locking options available: floor, head or both
- Bolt location: 2" from face of door to centerline of bolt. Bolt has 13.16" travel with fine adjustment.
- Custom engraving available, contact us for pricing.
Benefits: - Cylinder and thumbturn location eliminates physical strain when locking and unlocking
- Glass door applications secure the opening without bulky patch fittings or rails
- Bolt concealed inside pull provides a clean, streamlined look
- Simple door preparation allows for faster installation - Requires only 2 holes for half height pulls, 3 holes for full height
- Suites with popular ROCKWOOD door pulls, CORBIN RUSSWIN and SARGENT lever handles, MCKINNEY hinges, creating a continuum of design
- Offers flexibility in custom sizes for a variety of applications
Ordering: - Specify door handing
- Specify exterior and interior pull Overall Length
- Specify exterior and interior pull Center to Center (CTC) length
- Cylinders can be keyed different or alike. Cylinder keyed alike is when cylinders are on both sides of the door. Two keys are provided for every cylinder.
- Following cylinder options are available
- Yale 1109 rim cylinder, 6-pin, 1147 tailpiece, E1R keyway (keyed random)
- Yale K680 Small format interchangeable core housing (SFIC)
- Large format interchangeable core housing (LFIC)
- Shlage C Conventional Cylinder
- Thumbturn options: PostMount Thumbturn (standard), GeoMetek Thumbturn (standard for GeoMetek style locking pulls), ADA Thumbturn (PostMount only)
- It is permissible to use any strike, either top or bottom, so long it meets the design and application requirements of the opening.
- Top strike options are: LPS01 3/4" x 1-1/2" x 3", LPS02 3/4" x 2-1/2" x 3", LPS03 .050" x 1-1/8" x 2-1/4", LPS04 1-1/4" diam x 4-1/2" height, LPS05 1-1/4" diam x 4-1/2" height
- Bottom strike is #570 Dustproof Strike
- Door types: 3/8" - 7/8" thick glass, 1-3/8" to 2-1/2" thick aluminum, hollow metal or wood doors
- Select door stop options
- Specify door clearance at the bottom
- Specify door thickness and overall height
- Specify exterior and interior vertical pull overall and center to center lengths
- Specify net door width
- Specify horizontal push bar overall and center to center lengths
Note: These Rockwood Locking Pulls are custom made, made to order and are non-returnable and non-cancealable once order is confirmed from factory. |
|
