Rockwood 2945-630

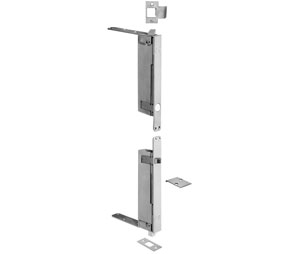

Name: Rockwood 2945-630 Combination Self Latching Top & Bottom Flush Bolt Set - Satin Stainless Steel
Brand: Rockwood
SKU: Rockwood 2945-630
Price: 172.95 USD

Rockwood 2945-630 Combination Self Latching Top & Bottom Flush Bolt Set - Satin Stainless Steel

× This image is for a similar product but it will differ in size, color and/or other attributes.

Rockwood 2945-630 Combination Self Latching Top & Bottom Flush Bolt Set - Satin Stainless Steel

Price: $172.95 USD

Comments (Optional)

ADD TO CART

In Stock (Minimums Apply):

Quick Ship - up to 25 units available to ship in 3 business days

For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Rockwood 2945-630 Combination Self Latching Top & Bottom Flush Bolt Set - Satin Stainless Steel

Combination Self Latching Top & Bottom Flush Bolt Set
Satin Stainless Steel
Size: 1" x 8-1/2"
Fasteners:

Top: 4 ea. #8 x 3/4 FH combo screws, 2 ea. #8-32 x 1/2 FH mach screws, 3 ea. #10 x 1 FH wood screws. Note: No plastic anchors required for top only.
Bottom: 10 ea. #8 x 3/4 FH combo screws, 4 ea. #8-32 x 1/2 FH mach screws, 6 ea. #10 x 1 FH wood screws, 2 ea. #6/8 plastic anchors.

For Wood or Plastic Covered Composite Type Fire Doors Rated up to and Including 1-1/2 Hours, up to 4'w x 8'h
Features:

Top Bolt:

Automatically engages when the inactive door closes
When the active door is opened, the inactive door stays latched at the top until the top bolt is released by pressing the plunger button on the bolt face

Bottom Bolt

Non-handed
Low closing force
Fully automatic; opening active door retracts bottom bolt
Override feature prevents damage to door or bolt if bolt head is blocked from entering strike
Bolt head rod is adjustable up to 1/2"
Thermal lock automatically locks the inactive door under high heat conditions due to fire

Can be used with the #570 Dust Proof Strike
ANSI: A156.3: Type 27

Product Brochure

Template
