Product Description:

	Rixson Pivots

ML19 Lead Lined 1-3/4" Thickness Door Intermediate Pivot

Cut Sheet

Templates

Product Brochure

Application

◊ Full Mortise

◊ Lead - Lined, Heavy or High Traffic Doors

◊ Handed

Introduction

Pivot sets provide the best possible means of hanging a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability.
The weight of the door is supported entirely by the bottom arm, which is directly connected to the pivot spindle. This hanging means provides several important advantages:
• Fasteners on the door and frame are in shear rather than tension (as with hinges) and are less likely to pull out overtime. This creates less stress on the frame assembly, prevents door sagging and allows the door to swing with less resistance from friction.
• A door supported in this manner relies on the strength of the floor to carry the weight, not the frame. This allows extremely heavy doors to be hung in an opening and allows door adjustment throughout the life of the building to compensate for settlement.

Product Description & Features

• Designed for doors with lead in center of door
• Screw holes designed to straddle the lead lining
• Available to accommodate door thicknesses 1-3/4"(44mm), 2"(51mm), 2-1/4"(57mm), 2-1/2"(64mm), or 3"(76mm)–specify thickness when ordering
• Load-bearing
• Non-ferrous base material
• Available for fire door assemblies– 1-3/4"(44mm) door only–specify FML19
• For 20-minute label suffix –20
• On labeled fire door assemblies, NFPA80 requires an intermediate pivot for every additional 30"(762mm) (or fraction thereof) of door height over 60"(1524mm)
• Furnished with wood and machine screws

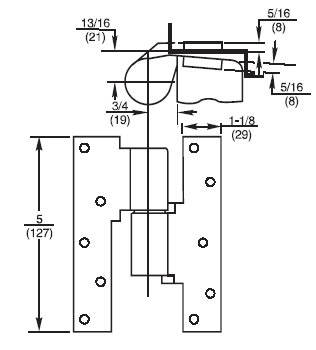

Technical Information
