Rixson L319 1-3/4
Rixson L319 1-3/4
Rixson L319 1-3/4" Door Intermediate Pivot
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
542.83 USD
In Stock Ready for Shipment
1. Select Finish___________________
Bright Brass (605/632) - Plated
Satin Brass (606/633) - Plated
Bright Bronze (611/637) - Plated
Satin Nickel (619) - Plated
Bright Nickel (618) - Plated
Coated Black (622/693) - Plated
Coated Aluminum (627/628) - Plated
Satin Bronze (612/639) - Plated
Oil Rubbed Bronze (613/640) - Plated
Bright Chrome (625/651) - Plated
Satin Chrome (626/652) - Plated
Bright Stainless (629) - Plated
Satin Stainless (630) - Plated
2. Select Handing_________________
LH (Left Hand)
RH (Right Hand)
LHR (Left Hand Reverse)
RHR (Right Hand Reverse)
Comments
(Optional)
ADD TO CART
This item is not in stock and typically ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Rixson Pivots
L319 1-3/4" Thickness Door Intermediate Pivot
Installation
Instruction
Templates
Product Brochure
A
pplication
◊ Full Mortise
◊ Lead Lined
◊ Handed
I
ntroduction
Pivot sets provide the best possible means of hanging a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability.
The weight of the door is supported entirely by the bottom arm, which is directly connected to the pivot spindle. This hanging means provides several important advantages:
• Fasteners on the door and frame are in shear rather than tension (as with hinges) and are less likely to pull out overtime. This creates less stress on the frame assembly, prevents door sagging and allows the door to swing with less resistance from friction.
• A door supported in this manner relies on the strength of the floor to carry the weight, not the frame. This allows extremely heavy doors to be hung in an opening and allows door adjustment throughout the life of the building to compensate for settlement.
P
roduct Description & Features
• Flush door and frame applications only
• Optional intermediate pivot where jamb portion cannot be mortised
• Door portion from ML19 pivot is available if lead-lined door is used–specify L319 and door thickness
• Non-ferrous base metal
• 3/4"(19mm) offset only
• Maintains door alignment
• Available for fire door assemblies–specify F319
• On labeled fire door assemblies, NFPA80 requires an intermediate pivot for every additional 30"(762mm) (or fraction thereof) of door height over 60"(1524mm)
• Furnished with wood and machine screws

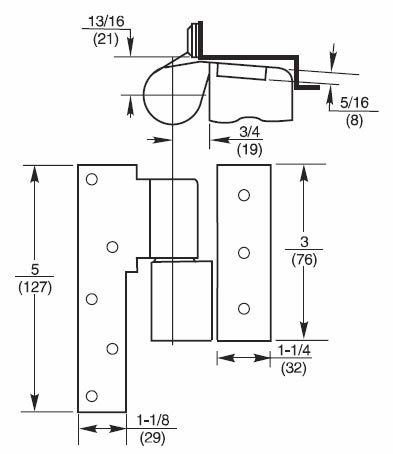

T
echnical Information
