Rixson 9-326 Overhead Holder and Stop
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
403.22 USD
In Stock Ready for Shipment
1. Select Finish
689 - Sprayed Aluminum
690 - Sprayed Dark Bronze
691 - Sprayed Light Bronze
696 - Sprayed Gold
626 - Satin Chrome
612 - Satin Bronze (Add $15.91)
613 - Oil Rubbed Bronze (Add $15.91)
606 - Satin Brass (Add $15.91)
630 - Satin Stainless (Add $15.91)
605 - Bright Brass (Add $29.44)
611 - Bright Bronze (Add $29.44)
619 - Satin Nickel (Add $29.44)
622 - Coated Black (Add $29.44)
629 - Bright Stainless _______________________ (Add $29.44)
2. Select Option
Not Required
5458 Left Hand Bracket for Pull Mount (Add $34.19)
5459 Right Hand Bracket for Pull Mount__________ (Add $34.19)
3. Select Accessories
Not Required
Torx - Security Torx Screws (Add $12.74)
LS - No cushion spring ______________________ (Add $12.74)
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
Made to order. Call for current lead time.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-844-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Overhead Holders and Stops
9-326 Surface Heavy Duty, Hold Open Function, Butt Offset Pivot
Installation Instruction 1
Installation Instruction 2
Template 1
Template 2
Product Brochure
I
ntroduction
Overhead stops are used to protect door assemblies. They cut down the wear and tear of frequency, closing mechanisms, wind gusts, abuse and vandalism. By limiting the door travel, they can add years to the life of the door, frame, and hanging means. Overhead holders and friction stays add convenience for the end user who already appreciates the need for the overhead stop.
P
roduct Description & Features
• Non-handed
• Slide track design
• Recommended for high-traffic, heavy abuse installations
• Heavy shock absorber spring provides 5°-7° compression before deadstop
• On/off knob on hold open models
• Stop, friction stay or hold open function
• Complete screw packet allows for installation in wood or metal door and frame
• For security areas Torx® screws, optional
• Standard architectural finishes
• Non-metal slide block and shock block
• 110° maximum opening
• 1-3/4" minimum door thickness
• LS option available for doors being used with electromechanical closers and floor closers with dead stop
• To mount on pull side of door, use bracket 5458 LH or 5459 RH
• Track is 1-3/16" square tube
• UL listed
Door Opening Chart (in inches)
Model Number
Butts Offset Pivots
Center Hung Pivots
Friction
Hold Open and Stop
Stop
*24" - 28"
25-1/2" - 30"
9-116
9-126
9-136
28-1/16" - 33"
30-1/16" - 36"
9-216
9-226
9-236
33-1/16" -38"
36-1/16/" - 41"
9-316
9-326
9-336
38-1/16" - 43"
41-1/16" - 46"
9-416
9-426
9-436
43-1/16" - 48"
46-1/16" - 50 "
9-516
9-526
9-536
* Butt hung only on this size door
ANSI No.
Friction
H.O.
Stop
----
CO4531
CO4541
T
ypical Installations Surface Mounting

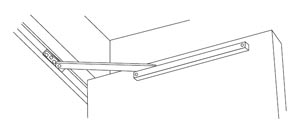

Method No. 1 - Standard Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series
The jamb bracket mounts on the stop strip with wood or machine screws. The channel or door bracket mounts with sex bolts
Method No. 2 - Rabbeted Door Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series
A special angle jamb bracket adapter mounts on the header with wood, machine screws or sex bolts. The jamb bracket attaches to the adapter with machine screws. The channel fastens to the door with sex bolts. (Same bracket as used with Method 3 and 5. See catalog for bracket number.)
Method No. 3 - Flush Door Installation (Push side of door) Nos. 8HD, 9, 10, 55 Series
This method of installation is identical to Method No. 2 for Rabbeted Doors. (Same bracket as used with Method 5. See catalog for bracket number.)
Method No. 4 - Reverse Installation (Pull side of door) Nos. 9, 10 and 55 Series
The jamb bracket adapter is secured to the header with wood or machine screws. The jamb bracket fastens to the adapter with machine screws and the channel mounts on the door with sex bolts. (Same bracket as used with Method 2 and 3. See catalog for bracket number.)
