Product Description:

	Shallow Depth Offset Floor Closers

Model 5103 1-1/2" Offset Shallow Depth Floor Closer
Model 5103 1-1/2" Offset Shallow Depth Floor Closer	Installation Instructions	Template	Product Brochure

Application

◊ Single Acting

◊ Interior Doors

◊ Weight up to 175 lbs. *

◊ Door Width up to 36"

* Door size & weight guidelines are determined using the appropriate number of intermediate pivots .

Introduction

Rixson’s shallow depth floor closers are recommended for low to medium traffic interior doors where traditional floor closer depth is too great for slab construction. Not recommended for high-frequency or exterior doors.

Features

• Shallow depth case [2"(51mm)] allows installation in thin slab floor construction
• Separate and independent latch and closing speed valves
• Spindles are removable and can be changed to alter hanging application
• Can be adjusted in cement case upto 3/16"(5mm) forward, backward and sideways with positive locking

Performance

Hold Open (HO)
Hold open at 90, 105 or 180° (requires door to swing approximately 5° beyond hold open point). Closers with hold open cannot be ordered with delayed action.
Delayed Action (DA)
Delayed action holds door open at 70° for up to 70 seconds. Closers with this feature will not have backcheck. Delayed action cannot be ordered with hold open closers.
Sealed Closer (SC)
Sealed closer protects it from moisture. Cement cse and closer body are sealed and epoxied together. Closer must be ordered with cement case and shipped together.
Extended Spindle (Ext Spdl)
To accommodate special floor conditions, the spindle can be ordered with longer spindle in 1/2" increments up to and including 2" longer.
Security Screws (Torx)
Security screws.

Product Description & Features

Recommended for applications where vertical movement of the door at installation is not possible, such as a door inset in a deep reveal or with no ceiling clearance
• Spring size 3 for 36 " door width
• Interchangeable spindle adapters
• Separate and independent valves for closing speed and latch speed
• Allows 180° door swing (trim permitting)
• Available non hold-open or 90°, 105°, or 180° hold open • Backcheck standard (Not available with delayed action)
• Delayed action available (Not available with backcheck)
• Available non hold-open (NHO) or hold open at 90, 105 or 180° (requires door to swing approximately 5° beyond hold open point)
• Available with floor plate or threshold installation (floor plate shown)
• Cycolac cement case
• Vertical door adjustment
• Standard top pivot: #180 x 1-1/2" included
• Doors up to 90"(2286mm) in height should use one intermediate pivot. Each additional 30"(762mm) warrants another intermediate pivot

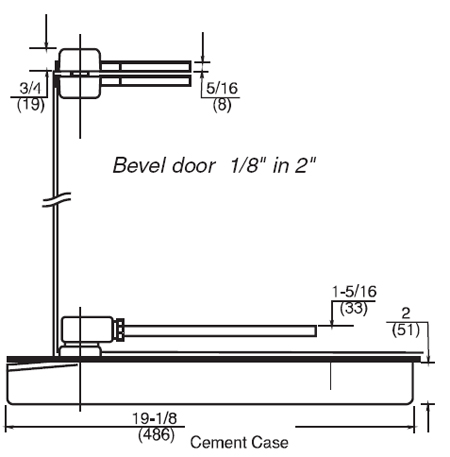

Technical Information
