Rixson 147 1-1/2

Name: Rixson 147 1-1/2" Pivot Set
Brand: Rixson
SKU: Rixson 147 1-1/2
Price: 835.09 USD

Rixson 147 1-1/2" Pivot Set

× This image is for a similar product but it will differ in size, color and/or other attributes.

Video Review Rixson 147 1-1/2" Pivot Set

Price: $835.09 USD

Comments (Optional)

ADD TO CART

This item is not in stock and typically ships in 1 business day.

+ Add to My Wish List

1-773-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

	Rixson Pivot Sets

147 1-1/2" Offset Pivot Set
147 1-1/2" Offset Pivot Set	Installation Instruction	Templates	Product Brochure	Cut Sheet
Extra length pins and extended spindles available in extra order.

Application

◊ Exterior or interior doors

◊ Weight to 350 lbs (Door size & weight guidelines are determined using the appropriate number of intermediate pivots)

◊ Exterior door width up to 3'0"(914mm)

◊ Interior door width up to 3'6"(1067mm)

◊ Handed

Introduction

Pivot sets provide the best possible means of hanging a door. They are designed to work with the laws of physics to provide long-lasting performance and reliability.
The weight of the door is supported entirely by the bottom arm, which is directly connected to the pivot spindle. This hanging means provides several important advantages:
• Fasteners on the door and frame are in shear rather than tension (as with hinges) and are less likely to pull out overtime. This creates less stress on the frame assembly, prevents door sagging and allows the door to swing with less resistance from friction.
• A door supported in this manner relies on the strength of the floor to carry the weight, not the frame. This allows extremely heavy doors to be hung in an opening and allows door adjustment throughout the life of the building to compensate for settlement.

Aesthetics

• Offset or center hung pivot sets are more attractive than alternative door hanging devices.
• Full floor-to-ceiling concealment is offered for center hung doors providing almost unlimited design flexibility.
• Extended spindles available to raise door above finished floor for complete concealment.
• Specification of heavy panels for door face with standard offset pivot preparation is available.
• Doors up to 1,750 pounds are accommodated, allowing all standard and heavy doors in a building to be hung by same hanging means.

Performance

• Full weight of door is borne by floor pivot, providing long pivot life and trouble-free operation.
• Screws are in shear in pivot-set installations and are less likely to pull out from tension–eliminates sagging doors.
• Vertical adjustment provides for field modifications to suit conditions

Safety & Security

• Models are available for labeled fire and lead-lined doors.
• Doors cannot be removed by vandals.
• Virtually concealed, pivots are not abuse or vandal prone.
• All offset pivots shall be UL10C compliant.

Economy

• Pivots provide longer life and more trouble-free operation than other door hanging means.
• Door and frame life is lengthened.

Suggested Specification

All pivots and/or pivot sets shall be the product of one manufacturer. Sets as noted in hardware groups shall be matching in design for both labeled fire doors, lead-lined doors and regular doors. Pivots for 20-minute fire doors shall be non-ferrous and match the finish of adjacent hardware. All pivot sets are required to meet ANSI grade one standard as listed in ANSI 156.4. Caps shall be hex type to increase security.

Product Description & Features

• Standard top pivot 180x1-1/2" included
• Intermediate pivot required: M19x1-1/2" (order separately), see page 132
• Bottom pivot mounts directly to floor
• Uses same arm and cap as 27 floor closer
• Available for fire door assemblies up to three hours–specify F147x1-1/2" Intermediate pivot required by UL Specify FM19x1-1/2"(order separately)
• For 20-minute label suffix –20
• Doors over 60"(1524mm) require the use of one intermediate pivot. Every additional 30"(762mm) of door height warrants another intermediate pivot
• 1-1/2"(38mm) offset (measured from centerline of pivot to face of door)
• Door edges must be beveled 1/8" in 2"
• Furnished with wood and machine screws
• Extended spindles available in 1/2"(13mm) increments up to 2"(51mm)
• Doors will swing 180°, trim permitting

Technical Information

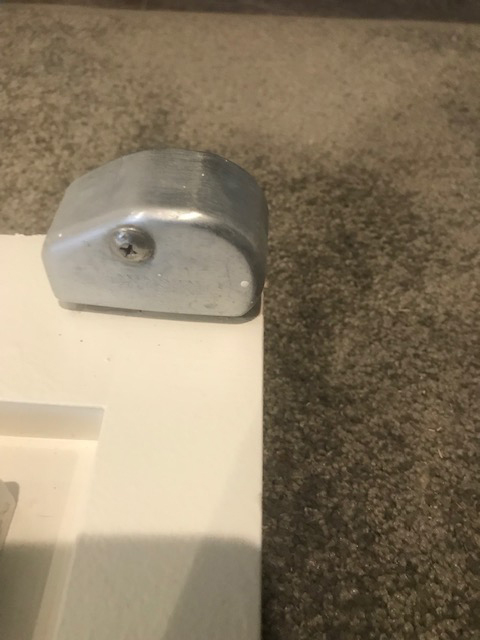

Customer Supplied Photos
