Product Description:

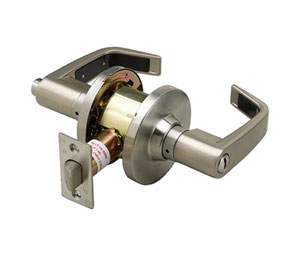

Richelieu Hardware EL1030 Small Commercial Lever - Privacy Lock - C32D
  • Latchbolt is activated by lever from either side except when inside push button locks outside lever. Outside lever permits emergency unlocking
  • Latch face: Stainless steel, brass. For 2-3/4" (70 mm) backset, 2-1/4" (57 mm)-long x 1-1/8" (29 mm)-wide front
  • Latch bolt: Solid brass or stainless steel bolt, 1/2" (12.7 mm) throw
  • Strike: Stainless steel, brass. Standard T-strike, 1-1/8" x 2-3/4" x 5/64" (28 x 70 x 2 mm)
  • Cylinder case: Steel, zinc-dichromate plated
  • Lever: Die-cast zinc, plated to match trim finish
  • Rose: Stainless steel, brass. 3" (75 mm) diameter
  • UL Listing: Meets UL 3-hour fire rating
  • ANSI: Meets or exceeds requirements of BHMA/ANSI A156.2 Series 4000 Grade 2
  • Lockset Type: Privacy - also available in Entrance or Privacy
  • Mechanism: Lever
  • Material: Die Cast Zinc
  • Color/Finish: Stainless Steel
  • Door Thickness: 1 3/8 to 1 3/4 in (34.925 to 44.45 mm)
  • Packaging format: Box
