Home > Weatherstripping > Automatic Door Bottoms > Mill Finish Aluminum > Sponge Neoprene and Pile Seal insert > Reese 430A 36

Reese 430A 36

copy to clipboard

Reese 430A 36" Automatic Door Bottom with Sponge Neoprene and Pile Seal insert - Mill Finish Aluminum - Recess Mount

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Reese 430A 36" Automatic Door Bottom with Sponge Neoprene and Pile Seal insert - Mill Finish Aluminum - Recess Mount
Main ImageVideo Review Reese 430A Automatic Door Bottom with Sponge Neoprene and Pile Seal insert - Mill Finish Aluminum
More from Reese
Price: $103.96 USD
Ships From
Comments (Optional)
ADD TO CART
In Stock (No Minimums):
Naples, FL Warehouse Qty: 2
For quantities beyond the "In Stock" above, the item(s) ships in 3 business days.

Reese has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a "stock" order. If you need a faster lead time, simply exceed the minimum order amount.

Additional Declarations - Reese is a personal favorite of absupply.net because of their exceptional quality and industry-leading shipping times. Once you try a Reese product you will likely be purchasing Reese for all your weatherstripping needs.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Reese 430A 36" Automatic Door Bottom with Sponge Neoprene and Pile Seal insert - Mill Finish Aluminum - Recess Mount
  • Automatic Door Bottom
  • Insert: Sponge Neoprene and Pile Seal
  • Length: 36"
  • Width: 29/32"
  • Height: 2-1/16"
  • Max drop: 3/4"
  • Material: Mill Finish Aluminum
  • Recess Mounted
  • Fire rated
  • Automatic door bottoms: 18" to 24" cannot be trimmed. 36", 42" and 48" can be trimmed up to 3". Other sizes can be trimmed up to 1". Part 370 can be trimmed up to 2" in all sizes.
  • PLEASE NOTE: Door bottoms are not designed to seal directly on carpet. For best results door bottoms should seal on a solid surface. The solid surface should be positioned above the level of the floor covering on either side of the door. Door bottoms are field reversible and can be used in semi-mortised applications.
Click for Printable Cut Sheet

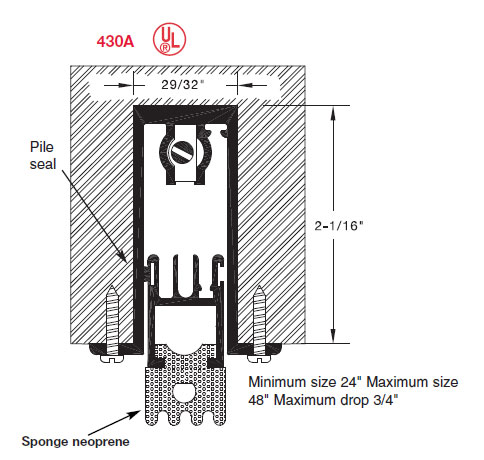

Reese 430A Hinge Side
Reese 430A Automatic Door Bottom with Sponge Neoprene
(Click to Enlarge)

Studying how the drop bar behaves on the Reese 430A
Video Review of Reese 430A Automatic Door Bottom with Sponge Neoprene and Pile Seal insert - Mill Finish AluminumVideo Detail Page
Questions and Answers
Q: Why is there no cover plate on the end of door bottom with the screw. This is a question for manufacturer – see image here:

View Image

A: There is only one supplied for the swing side (latch stile) only, we only offer a solid plate no holes in them for the hinged side. You can buy the second plate only. To be clear these come with one blank plate for the latch side only. If the client wanted a second plate for the hinge stile, you can order it and you would have to prep it for the drop bolt.

The manufacturer did not provide a satisfactory answer in terms of why its default to send only one - I would imagine its because they simply dont have a means to easily manufacturer the pierced second plate.
