Pro Value IHP388-26D

copy to clipboard

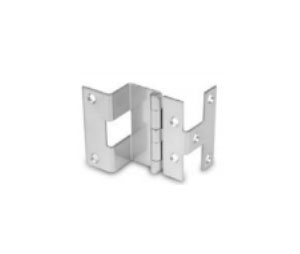

Pro Value IHP388-26D Dull Chrome 5 Knuckle Institutional Overlay Hinge - 1 Pr.

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pro Value IHP388-26D Dull Chrome 5 Knuckle Institutional Overlay Hinge - 1 Pr.
Main ImageVideo Review Pro Value IHP388-26D Dull Chrome 5 Knuckle Institutional Overlay Hinge - 1 Pr.
More from Pro Value
Price: $32.55 USD
Ships From
Comments (Optional)
ADD TO CART
This item is not in stock and typically ships in 10-15 business days.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

Dull Chrome 5 Knuckle Institutional Overlay Hinge - 1 Pr.

Cut Sheet
  • Finish: Dull Chrome.
  • For doors 13/16" Thick
  • Barrel Height: 2-3/4" (51.63)
  • Sold in.Pair. When you purchase one we will ship you one pair of hinges.
  • Packing: 10 pairs per box, screws included.
  • Door Thickness: 13/16"
  • Material Thickness: 0.83"
Video Review of Pro Value IHP388-26D Dull Chrome 5 Knuckle Institutional Overlay Hinge - 1 Pr.Video Detail Page
Questions and Answers
Q: Would this dull chrome 5 knuckle institutional overlay hinge works with a 1 inch thick door? My door panel and side panel are both 1 inch thck.
A: No, we would use the Pro Value IHP388-26D for a door thickness of 13/16" and for a door thickness of 1” I would recommend using the Pro Value IHP7036-26D Dull Chrome 5 Knuckle Institutional Overlay Hinge as seen here:

Click Here

Q: Thank you for replying. In addition to my query, is Pro Value IHP7036-26D a full overlay type? I am looking for a full overlay for a 1" side panel. And since it's for a 1-3/8" door thick hinge, I guess I will have to pad the 3/8" extra space as my door's thickness is 1", or what's the remedy? Hoping you deliver these items to the Philippines or you may have a dealer over there.
A: According to the cut sheet as seen here:

Download File

would provide an overlay of 1"

Regarding your door thickness of 1", the hinge pin will indeed stand proud of the face of the door with an option being using a thinner door thickness and therefore a different hinge. 13/16" would be the thinner option.
