Securitron EL-CEPT-613E

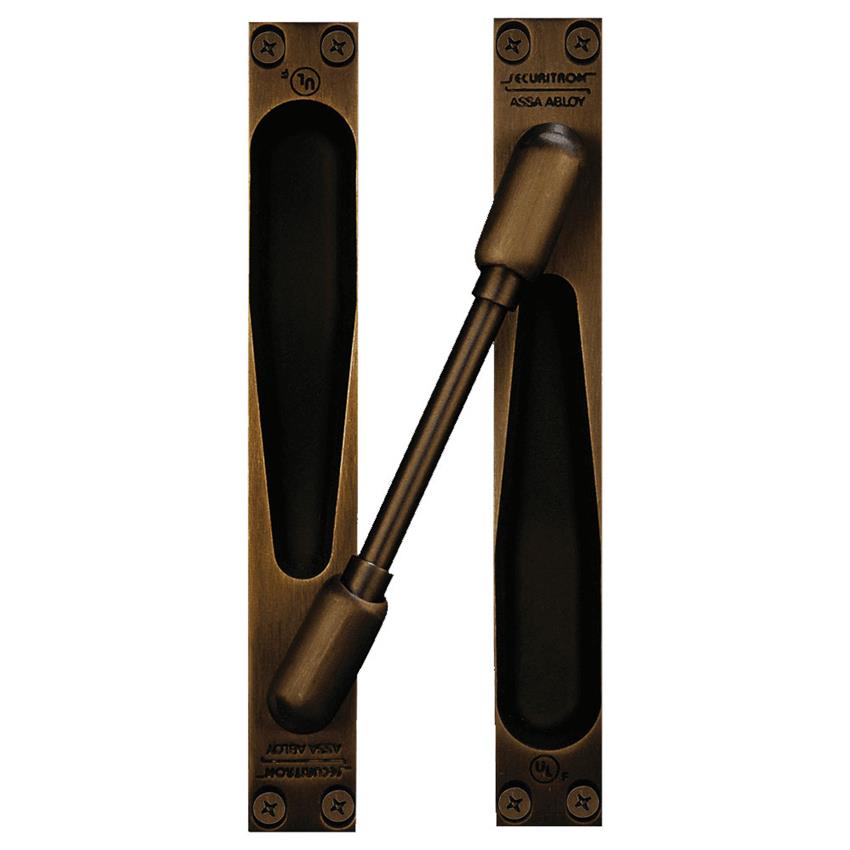

Securitron EL-CEPT-613E Concealed El Power Transfer, 12 Wire, with ElectroLynx Connector, Oil Rubbed Bronze
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
513.69 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
In Stock (Minimums Apply
):
For quantities beyond the "In Stock" above, the item(s)
ships in 1-2 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
You must order a total of $85.00 worth of product from Securitron to place an order.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Securitron EL-CEPT-613E Concealed El Power Transfer, 12 Wire, with ElectroLynx Connector, Oil Rubbed Bronze
Concealed Electric Power Transfer
12 Wire
Oil Rubbed Bronze Finish
22 AWG Wires, Electrolynx Connector

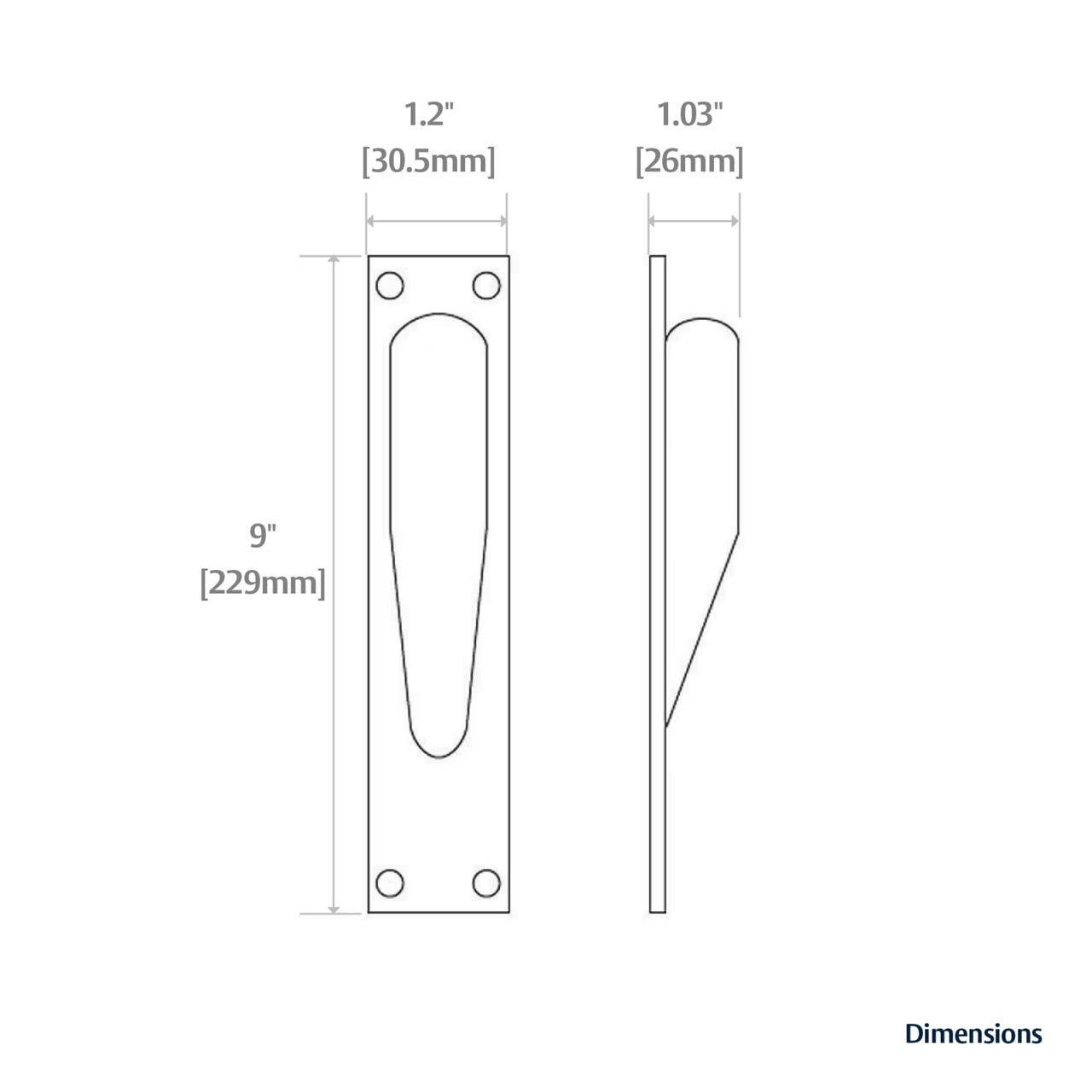

CEPT Housing: 9-1/16"L x 1-3/16"W x 1-7/16"D
Features
Mortises into the edges of the door and frame
Tamper resistant. No exposed openings prevents foreign objects from reaching the wires or jamming the device
All metal construction including backboxes - no plastic
10 wire configuration includes 2-18 gauge wires for higher current devices
Available with CAT-5E and ElectroLynx compatible connectors
Four architectural finishes: US32, US04, US10 and US10B
Installs above 2nd hinge
7/8" knockouts on back boxes accommodate EMF-type fittings
Tested to 1,000,000 cycles
Will only function with butt hinges - up to 6"
Will not work on center-hung or balanced doors
Will work with Continuous Hinges - please check with Continuous Hinge Manufacturer as to their cutout availability and charge for this cutout
Technical Note
Not for use with center hung or balanced doors, pocket or offset pivots or swing clear hinges.
Door swing ranges when installed with butt hinges are:
Hinge size 5" with Swing Range up to 180º
Hinge size 5-1/2" with Swing Range up to 130º
Hinge size 6" with Swing Range up to 110º
Certifications
ANSI/UL 10C Listed, 3 hour rated
ULC-S318 Listed, 3 hour rated
ANSI/SDI-BHMA A250.13 (+/- 150 psi) Windstorm Listed
Florida Building Code Approved
