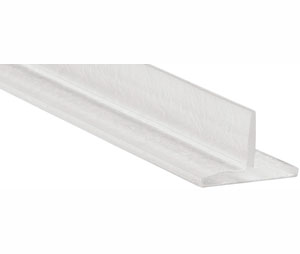

Pemko S771C 10 Adhesive Astragal/Meeting Stile Gasketing - Clear - 10' length

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko S771C 10 Adhesive Astragal/Meeting Stile Gasketing - Clear - 10' length
Main ImageVideo Review Pemko S771-C Self-Adhesive Astragal/Meeting Stile Seal - Clear
More from Pemko
Price: $38.10 USD
Ships From
Comments (Optional)
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days with $165.00 minimum purchase of Pemko products or 17 business days for smaller orders.

Pemko has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

This item will ship in a roll.

1-773-809-3667

Sales
Technical Support
Product Description:

pemko logo Pemko S771C 10 Adhesive Astragal/Meeting Stile Gasketing - Clear - 10' length

  • Adhesive Astragal/Meeting Stile Gasketing
  • Length: 10'
  • Color: Clear
  • Material: Silicone
  • Seal begins compressing at 5/16"; compresses to seal up to a 1/16" gap.
  • Supplied with Self-adhesive backing
  • Use on virtually any pair of doors where sound attenuation is required
  • Seals the opening to prevent heat loss, retards the passage of smoke, and acts as a weatherization product
  • The S771 astragal/meeting stile seals can be installed on virtually any pair of doors where sound attenuation is required. These products (S771/S772) seal the opening to prevent heat loss, slow the passage of smoke and act as a weatherization product.
  • Features excellent resistance to compression set, particularly at elevated temperatures and for extended periods of time.
  • Stays flexible between -58 degrees (F) and 450 degrees (F) with very high resistance to flex fatigue. maintains a low closing force.
  • Maintains a low closing force
  • Easy installation requires no mechanical fasteners, can be cut to size in the field.
  • Available in 7, 8, 9 and 10 ft. coils.
  • NOTE: Storage and shelf life: All adhesive gaskets have a limited shelf life. This product must be used within 6 months of purchase and must be stored between 50 degrees (F) and 100 degrees (F).
  • Fire Rated
  • Smoke Rated UL1847
  • Air Seal Rated
  • Sound Tested - ASTM E153
  • BHMA Certified
  • GreenGuard Certified
  • Intertek Testing (Warnock Hersey)

Dimensions
Questions and Answers
Q: I would like to use this on french doors. The gap is 5/16". Would I need to apply this to both doors or just one of them?
A: The Pemko S771C 10 Adhesive Astragal/Meeting Stile Gasketing - Clear - 10' length is 9/32” (.281”) projection would be short of filling your 5/16” (.3125”) gap. As a result I would recommend using one on each door so that they overlap so as to fill the gap.
