Pemko DFM95RG-HD1
Pemko DFM95RG-HD1

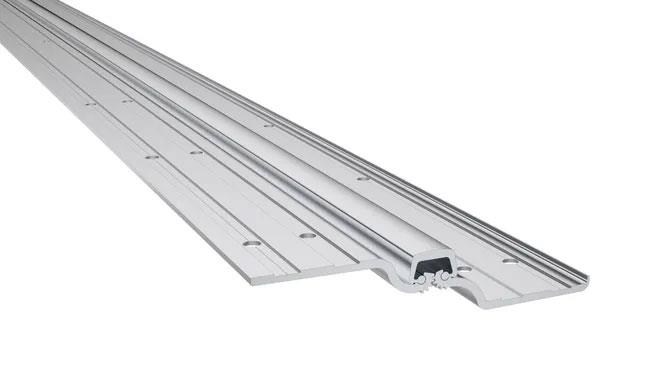

Pemko DFM95RG-HD1 Full Mortise Raised Gear 95" Continuous Hinge, Dark Bronze Anodized Aluminum
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
257.85 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships in 1 business day.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Pemko DFM95RG-HD1 Full Mortise Raised Gear 95" Continuous Hinge, Dark Bronze Anodized Aluminum
Raised Gear Continuous Hinge
Full Mortise
Length: 95"
Material: Aluminum
Finish: Dark Bronze Anodized Aluminum
Heavy Duty
Grade 1
Non-Handed
Fasteners: Self Drilling Tek screws
For doors 1-3/4" thick
Maximum Swing: 180º
Minimum Hinge Clearance: 5/16"
Features
For wood or metal frames with applied facing or other decorative moldings
Conceals both leaves
Special FirePins are only required on 3-Hour (A-Label) assemblies
Certain door and frame conditions may require an extra 1/32"-1/16" clearance
Excessive clearance on fire rated assemblies may violate the requirements for NFPA 80
Benefits
Special hinge reinforcements are not required
Removal of hinge reinforcements in the door and frame is not advised
Hollow metal door and frame manufacturers’ standard is acceptable
Guaranteed for the life of the opening against defects in material or workmanship (HD only)
Certifications
Health Product Declaration (HPD)
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
ANSI/BHMA Standard A156.26
Hinges Catalog
Template
Cut Sheet
Installation Instructions

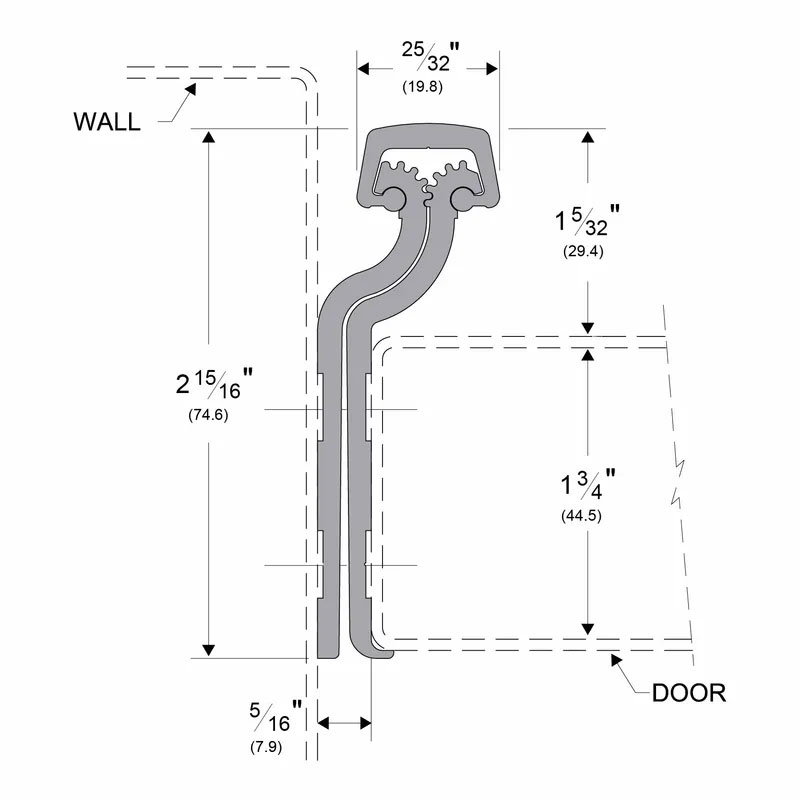

Dimensions
