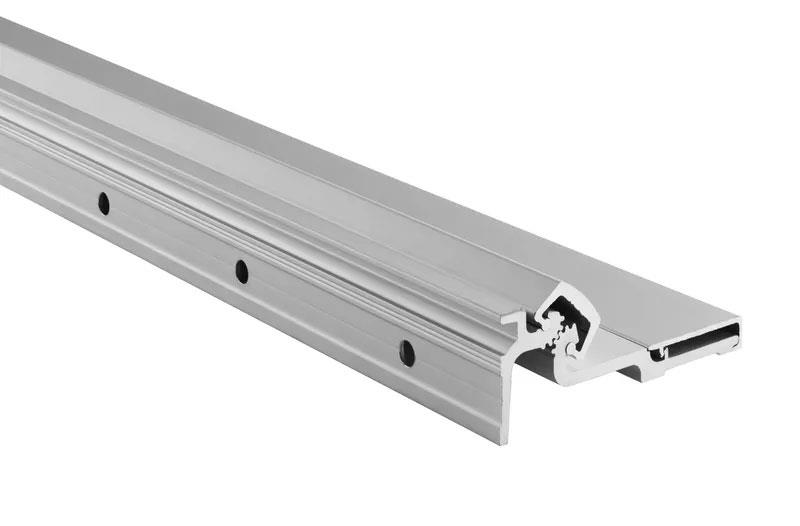

Pemko CFS83HD1-M PemKonnect Heavy Duty Grade 1 Full Surface Continuous Geared Hinge, 83" Length, Clear Anodized
×
This image is for a similar product but it will differ in size, color and/or other attributes.
×
This product review video is for a similar product but it will differ in size, color and/or other attributes.
Price:
$
210.30 USD
In Stock Ready for Shipment
Comments
(Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s)
ships within 14 business days.
Check Inventory
Request Quote
No Minimum
There is no minimum quantity required for this product for quantities up to the level listed below.
Minimum Order Levels Apply
This item has minimum order levels that need to be met.
Check Inventory Levels
Enter your email address and we will check with all available sources and get back to you with exact inventory levels and estimated shipping times.
Qty. Needed:
Request Quote
Enter the qty needed and we will generate a quote and save your order in our system.
You will not be charged and we will not fulfill the order.
Qty. Needed:
+ Add to My Wish List
1-773-809-3667
Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:
Pemko CFS83HD1-M PemKonnect Heavy Duty Grade 1 Full Surface Continuous Geared Hinge, 83" Length, Clear Anodized
PemKonnect Full Mortise Continuous Geared Modular Hinge
Specifications
Length: 83"
Can be combined with
Pemko CFS12HD1-M
to make a 95" total length (94-13/16" net length) hinge
Grade: Grade 1
Hinge Material: Aluminum
Hinge Finish: Clear Anodized
Hinge Mounting Type: Full Surface
Hinge Strength: Heavy Weight
Handing: Non-handed
Fastener: Teks
Fastener Type: Self Drilling
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Maximum Door Width: 4'
Maximum Hinge Length: 120"
Minimum Length: 79"
Maximum Swing: 180°
Minimum Hinge Clearance: 1/16"
Weight: 1.29lbs. per foot
Features
Hollow metal door and frame manufacturers’ standard reinforcement is acceptable
Applied to the exposed surfaces of the door and frame
Removal of hinge reinforcements in the door and frame is not advised
Custom lengths available
Special hinge reinforcements are not required
FirePins are required on 3-Hour (A-Label) assemblies
Excessive clearance on fire rated assemblies may violate NFPA 80
PemKonnect® Modular Hinge option (FS_HD1-M)
Packed in a 45" box
Hinge segments fit together easily
ANSI/BHMA A156.26 and UL certified
Equal number of bearing as a traditional continuous hinge
Can be cut in field
Benefits
For swinging fire doors of hollow metal, tin-clad, sheet metal or steel covered composite type rated up to 3 hours
For wood covered composite type rated up to and including 1-1/2 hours
Guaranteed for the life of the opening against defects in material or workmanship (HD only)
PemKonnect Modular option (-M) Easy to transport + decrease in freight damage, shipping costs, storage space
No extra tools needed for assembly
Meets building construction and fire code requirements
Supports the same weight requirements
Easily modified for custom lengths
Certifications
Health Product Declaration (HPD)
UL 10C - Standard for Positive Pressure Fire Tests of Door Assemblies
ANSI/BHMA Standard A156.26
Product Brochure
Cut Sheet
Template
Installation Instructions
Net Lengths

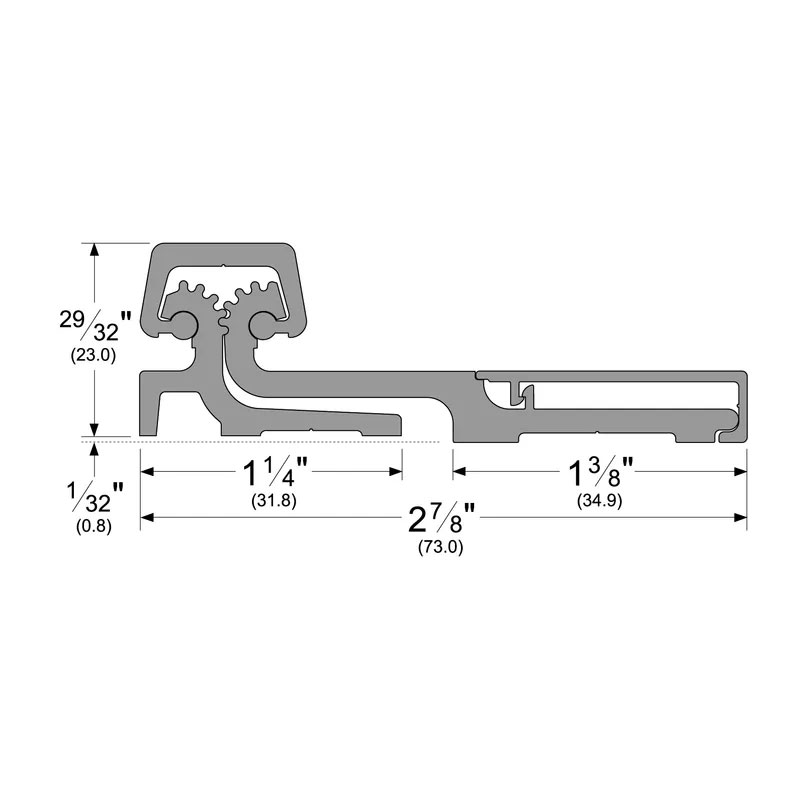

Dimensions
