Pemko CFM12HD1-M

Name: Pemko CFM12HD1-M PemKonnect Heavy Duty Grade 1 Full Mortise Continuous Geared Hinge, 12" Length, Clear Anodized
Brand: Pemko
SKU: Pemko CFM12HD1-M
Price: 43.94 USD

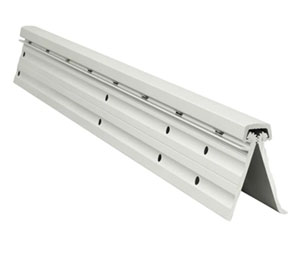

Pemko CFM12HD1-M PemKonnect Heavy Duty Grade 1 Full Mortise Continuous Geared Hinge, 12" Length, Clear Anodized

× This image is for a similar product but it will differ in size, color and/or other attributes.

Pemko CFM12HD1-M PemKonnect Heavy Duty Grade 1 Full Mortise Continuous Geared Hinge, 12" Length, Clear Anodized

Price: $43.94 USD

Comments (Optional)

ADD TO CART

For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Pemko CFM12HD1-M PemKonnect Heavy Duty Grade 1 Full Mortise Continuous Geared Hinge, 12" Length Mid Segment, Clear Anodized

PemKonnect Full Mortise Continuous Geared Modular Hinge

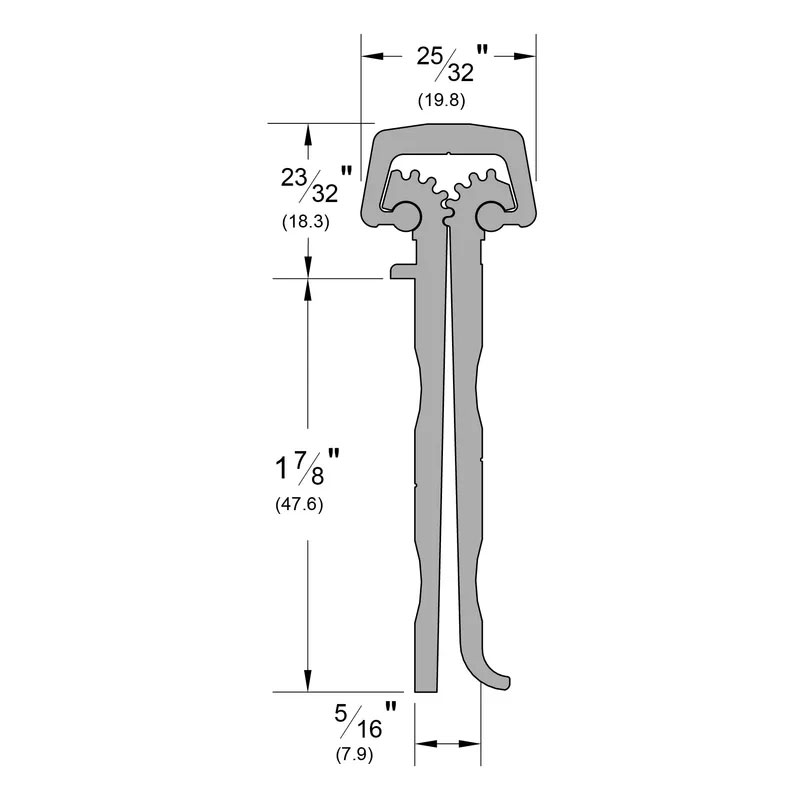

Specifications

Length: 12"
Usa as a mid segment to combine with Pemko CFM83HD1-M to make a 95" total length (94-13/16" net length) hinge
12" segments (FS12HD1-M, FM12HD1-M, FM12SLF_HD1-M, FS12CPHD1-M) should not be combined nor cut in field - doing so will void any applicable product warranties and certifications.
Grade: Grade 1
Hinge Material: Aluminum
Hinge Finish: Clear Anodized Aluminum
Hinge Mounting Type: Full Mortise
Hinge Strength: Heavy Weight
Handing: Non-handed
Fastener: Teks
Fastener Type: Self Drilling
Maximum Door Thickness: 1-3/4"
Minimum Door Thickness: 1-3/4"
Maximum Door Width: 4'
Maximum Hinge Length: 120"
Minimum Length: 79"
Maximum Swing: 180°
Minimum Hinge Clearance: 5/16"
Weight: 1.14lbs. per foot
Product Note: **Door edge must be square on hinge side. For beveled edge doors, additional clearances are required.**

Features

Hinge is applied to the full length of the door to evenly distribute the door weight
Door gap is eliminated, increasing security and privacy
Inter-meshing gear segments provide greater bearing surface and extend life of the hinge
Assembly is anodized after all machining is done, resulting in a harder, longer-lasting hinge
Lengths can be cut in the field for a precise fit
PemKonnect® Modular Hinge option (FM_HD1-M)
Packed in a 45" box
Hinge segments fit together easily
ANSI/BHMA A156.26 and UL certified
Equal number of bearing as a traditional continuous hinge
Can be cut in field
Special hinge reinforcements are not required. Hollow metal door and frame manufacturers’ standard is acceptable. Removal of hinge reinforcements in the door and frame is not advised

Benefits

PemKonnect Modular option (-M) Easy to transport + decrease in freight damage, shipping costs, storage space
No extra tools needed for assembly
Meets building construction and fire code requirements
Supports the same weight requirements
Easily modified for custom lengths
