Pemko 4131CPKL 32 LH

copy to clipboard

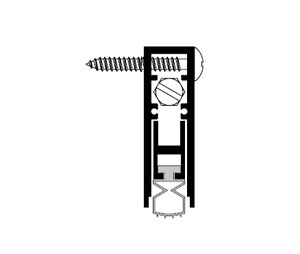

Pemko 4131CPKL 32" Clear Anodized Aluminum Automatic Door Bottom with Pemko Prene insert - Surface/Semi-Mortise Mount - Left Hand

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko 4131CPKL 32" Clear Anodized Aluminum Automatic Door Bottom with Pemko Prene insert - Surface/Semi-Mortise Mount - Left Hand
Main ImageVideo Review Pemko 4131CPKL Clear Anodized Aluminum Auto Door Bottom w/Pemko Prene insert
More from Pemko
Price: $89.30 USD
Ships From
Comments (Optional)
In Stock (No Minimums):
3 - In Stock
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.

Pemko has a minimum order requirement. Orders smaller than the required minimum have a longer lead time as we need to consolidate onto a stock order. If you need a faster lead time, simply exceed the minimum order amount.

1-844-809-3667

Sales
Technical Support
Product Description:

pemko logo Pemko 4131CPKL 32" Clear Anodized Aluminum Automatic Door Bottom with Pemko Prene insert - Surface/Semi-Mortise Mount - Left Hand

  • Automatic Door Bottom
  • Length: 32"
  • Material: Aluminum
  • Finish: Clear Anodized
  • Insert: Pemko Prene
  • All Pemko automatic door bottoms seal up to a 3/4" gap under the door
  • Fire Rated
  • BHMA Certified
  • Screw applied end plates are provided for all mounting applications
  • Can be mounted to either wood or hollow metal doors
  • Specify in the Comments field if the Automatic Door Bottom is for a semi-mortise application so that shorter screws can be provided.
  • Features a smoother action positive seal mechanism
  • All Pemko automatic door bottoms consist of an aluminum case which surrounds a movable drop-bar seal
  • The drop-bar seal is actuated by a plunger which contacts the jamb as the door is closing, forcing the drop-bar seal down against the floor/threshold
  • Non-handed and reversible
  • Installation is fast and easy because disassembly is not required to change handing: simply flip the automatic door bottom and you’ve reversed the hand
  • This unit is not technically a handed item. We request the handing to be specified at the time of order for two reasons. 1. There are instances when the factory requests this information. We have in the past related to the manufacturer that the item is not handed yet they insist on the hand so we simply provide them a handing in all instances. 2. It is indeed helpful knowledge to know the handing of a door at the time of order so that we can help eliminate a potential conflict when there are multiple line items on a single order.When ordering this item do feel free to indicate any hand however indicating the actual hand would be best practice.
  • Left Hand

Dimensions
