Pemko 3493BDGS120L-M

copy to clipboard

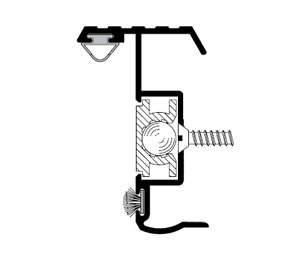

Pemko 3493BDGS120L-M Bright Dip Gold Anodized 120" Inswing Slimline Locking Astragal with Slide Bolt with 18" Long Throw - Silicone Insert - Mortise Mount

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
Pemko 3493BDGS120L-M Bright Dip Gold Anodized 120" Inswing Slimline Locking Astragal with Slide Bolt with 18" Long Throw - Silicone Insert - Mortise Mount
More from Pemko
Price: $309.31 USD
Ships From
Specify dimension from top to centerline of deadbolt face cutout (A) (Optional)
Specify dimension from centerline of deadbolt cutout to centerline of latchbolt cutout (B) (Optional)
Insert deadbolt cutout height (C) (Optional)
Insert latchbolt cutout height (D) (Optional)
Specify dimension for other cutout (E) (Optional)
Comments (Optional)
ADD TO CART
For quantities beyond the "In Stock" above, the item(s) ships in 10 business days.
+ Add to My Wish List

1-844-809-3667

Sales
sales@absupply.net
Technical Support
tech@absupply.net
Product Description:

pemko logo Pemko 3493BDGS120L-M Bright Dip Gold Anodized 120" Inswing Slimline Locking Astragal with Slide Bolt with 18" Long Throw - Silicone Insert - Mortise Mount
  • Inswing Slimline Style Locking Astragal with Slide Bolt and 18" Long Throw
  • Length: 120"
  • Insert: Silicone
  • Material: Aluminum
  • Finish: Bright Dip Gold Anodized
  • Comes with a molded sponge neoprene bottom seal and with a vinyl snap-in cover strip to conceal the cutout and cover the mounting screws
  • Features:
    • Economical smooth acting slide bolt
    • full 3/8" diameter steel bolt with 1-1/16" throw
    • four-way adjustable strike plate mounting for latchbolt and deadbolt
  • A standard deadbolt punchout is 3/4" x 4" at 40" on center
  • Punchout supplied on request only
  • Stock lengths are 80", 84", 96" and 120"
  • Custom sizes are available, contact us for further details
  • Specify handing.
  • Mortise Mount
  • NON RETURNABLE

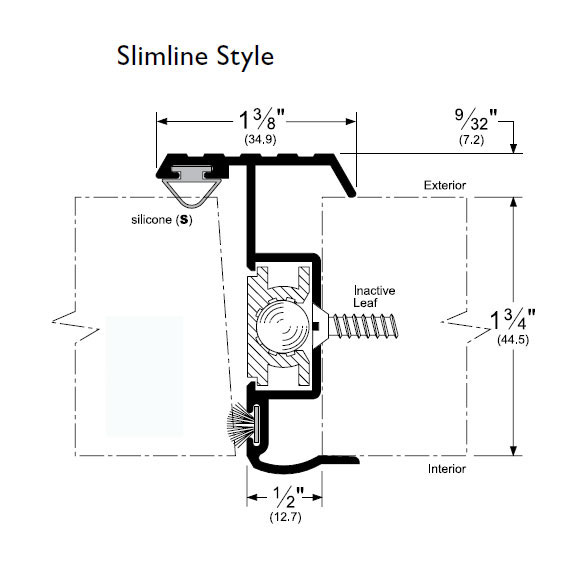

Dimensions
