PBB 4B815045652N

copy to clipboard

PBB 4B815045652N 5" x 4.5" 4 Ball Bearing Heavy Weight NRP Steel Hinge - 652/US26D Satin Chrome

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
PBB 4B815045652N 5" x 4.5" 4 Ball Bearing Heavy Weight NRP Steel Hinge - 652/US26D Satin Chrome
Main ImageVideo Review Full Mortise Hinges 4B81 x 5 x 4-1/2 x NRP x TMS x 652 - PBB
More from PBB
Price: $21.68 USD
Ships From
Comments (Optional)
In Stock (Minimums Apply):
Atlanta, GA: 51
Kansas City, MO: 5
Ontario, CA: 710
For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
PBB 4B815045652N 5" x 4.5" 4 Ball Bearing Heavy Weight NRP Steel Hinge - 652/US26D - Satin Chrome
  • 4 Ball Bearing Heavy Weight Hinge (4B)
  • Non-Removable Pin
  • Size: 5" x 4.5"
  • Material: Steel
  • Hinge Type: Full Mortise
  • Finish: 652/US26D - Satin Chrome
  • Recommended for over 3'4" width doorsand having a thickness of 2" or more
  • Weight: Heavy Weight - Used for heavy weight doors receiving high frequency service
  • PACKAGING INFORMATION:
    • One hinge per plastic bag, 3 hinges and 1 screw pack per unit carton.
    • 16 unit carton or 48 hinges per master shipping carton.
    • 1 screw pack includes all machine screws (24), and 1/2 wood screws (12).
  • 5” STANDARD SCREW SIZE: FHMS – 12-24 x 1/2” FHWS – 12 x 1-1/2”
Questions and Answers
Q: What size pin torx driver I need for the typical screws that come with PBB Torx screw equipped hinges.
A: According to the manufacturer:

for 4.5"+ it is a #3. For smaller hinges, it is a #2 who further clarified the #3 as 12 side and the #2 as a 10 side.

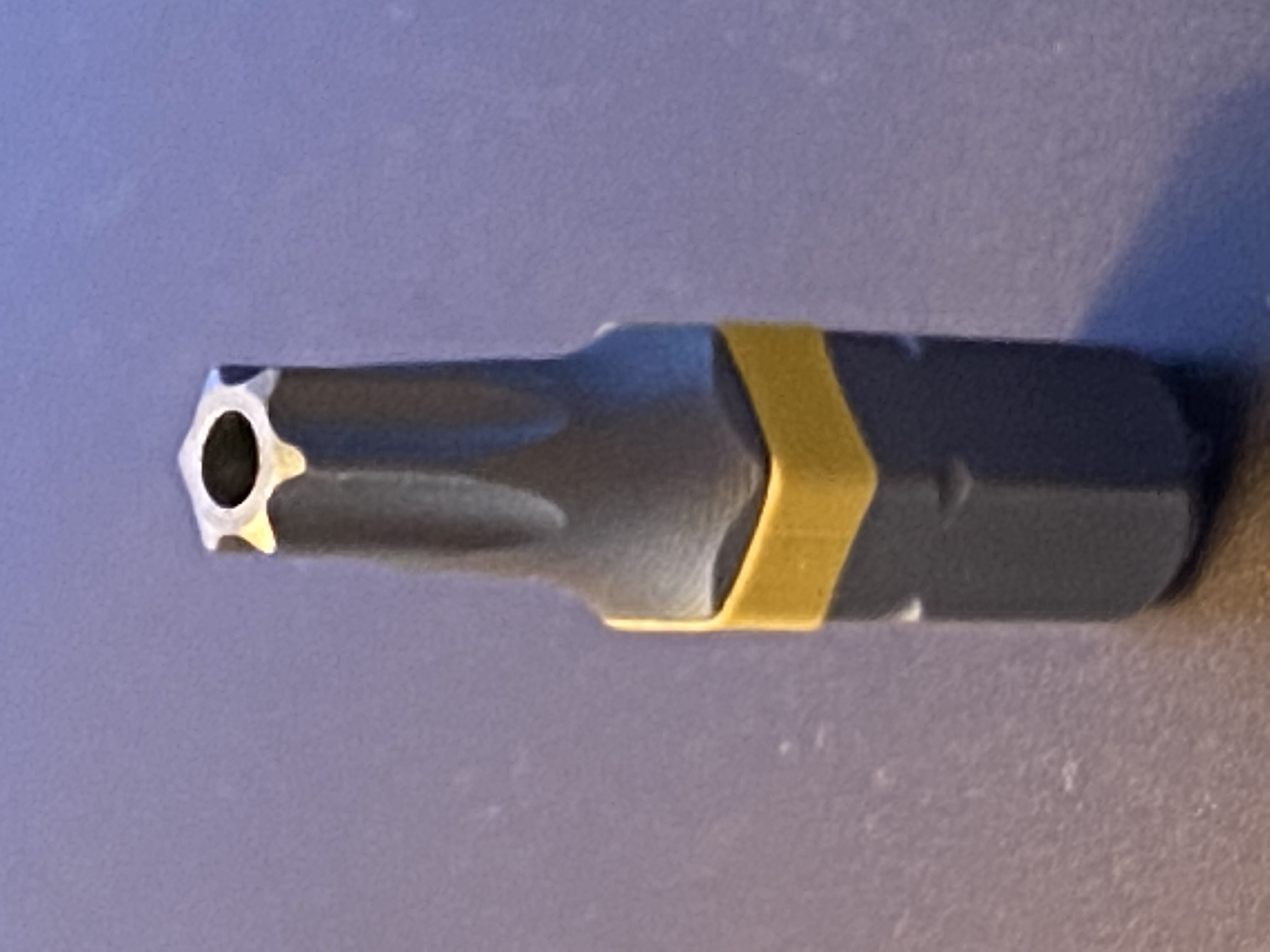

The correct answer however is T25. The 12/24 machine and #12 wood screw from PBB for the Full Mortise Hinges 4B81 x 5 x 4-1/2 x NRP x TMS x 652 - PBB when packaged with Pin Torx screws is a T25 Pin Torx driver as seen here:

View Image
