ABH 1023SL US26D Overhead Concealed Door Stop - Standard fastener package, Satin Chrome Finish

enlarge
enlarge
× This image is for a similar product but it will differ in size, color and/or other attributes.
ABH 1023SL US26D Overhead Concealed Door Stop - Standard fastener package, Satin Chrome Finish
Main ImageVideo Review ABH 1023SL US32D Overhead Concealed Door Stop - Standard fastener package, Satin Stainless Steel
More from ABH
Price: $289.28 USD
Ships From
Comments (Optional)
Quick Ship - up to 10 units available to ship in 10 business days
For quantities beyond the "In Stock" above, the item(s) ships within 14 business days.

1-844-809-3667

Sales
Technical Support
Product Description:
ABH 1023SL US26D Overhead Concealed Door Stop - Heavy Duty, Satin Chrome Finish (626)
  • 1000SL Series
  • Concealed mount
  • Heavy duty
  • Slim line channel designed for aluminum store front doors
  • Stop function only
  • Single or double acting doors
  • For interior or exterior use on frequent traffic and heavy weight doors
  • Standard installation from 85° to 110° of opening (5° increments)
  • Shock absorbing spring provides 3° to 5° cushion before dead-stop
  • UL Listed as Miscellaneous Fire Door Accessories for use on wood fire doors rated up to 90 minutes and metal fire doors rated up to 3 hours (stop function only)
  • Average weight per unit = 5 lbs
  • 1-3/4" minimum door thickness
  • Standard fastener package
  • Door Frame Opening
    - Hinges or Offset Pivots: 36" - 39-15/16"
    - Center Hung: 39" - 42-15/16"
  • ANSI Code: C01541
  • Material: Stainless steel is the standard base material for arm and jamb
  • Finish: Satin Chrome


Questions and Answers

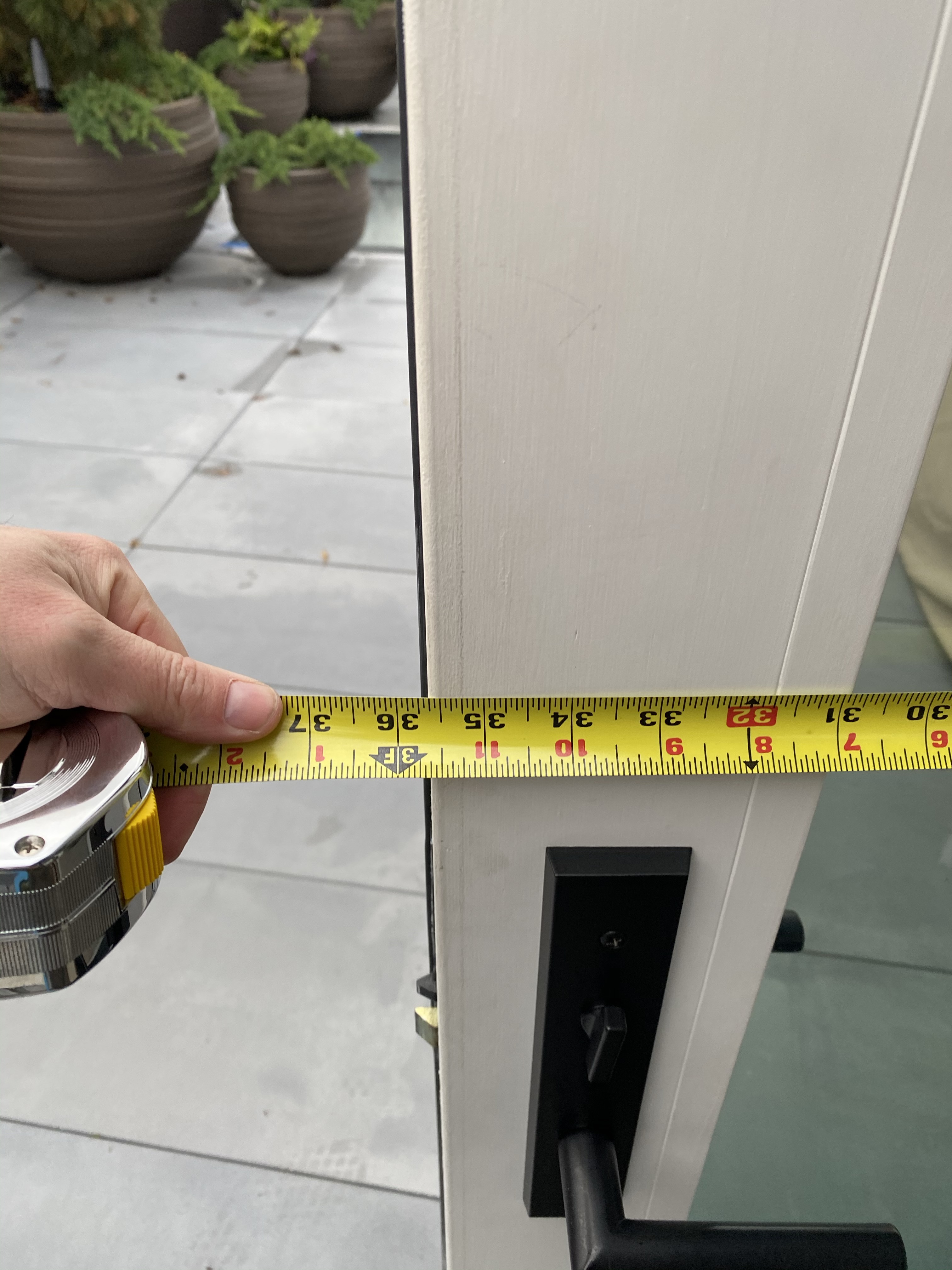

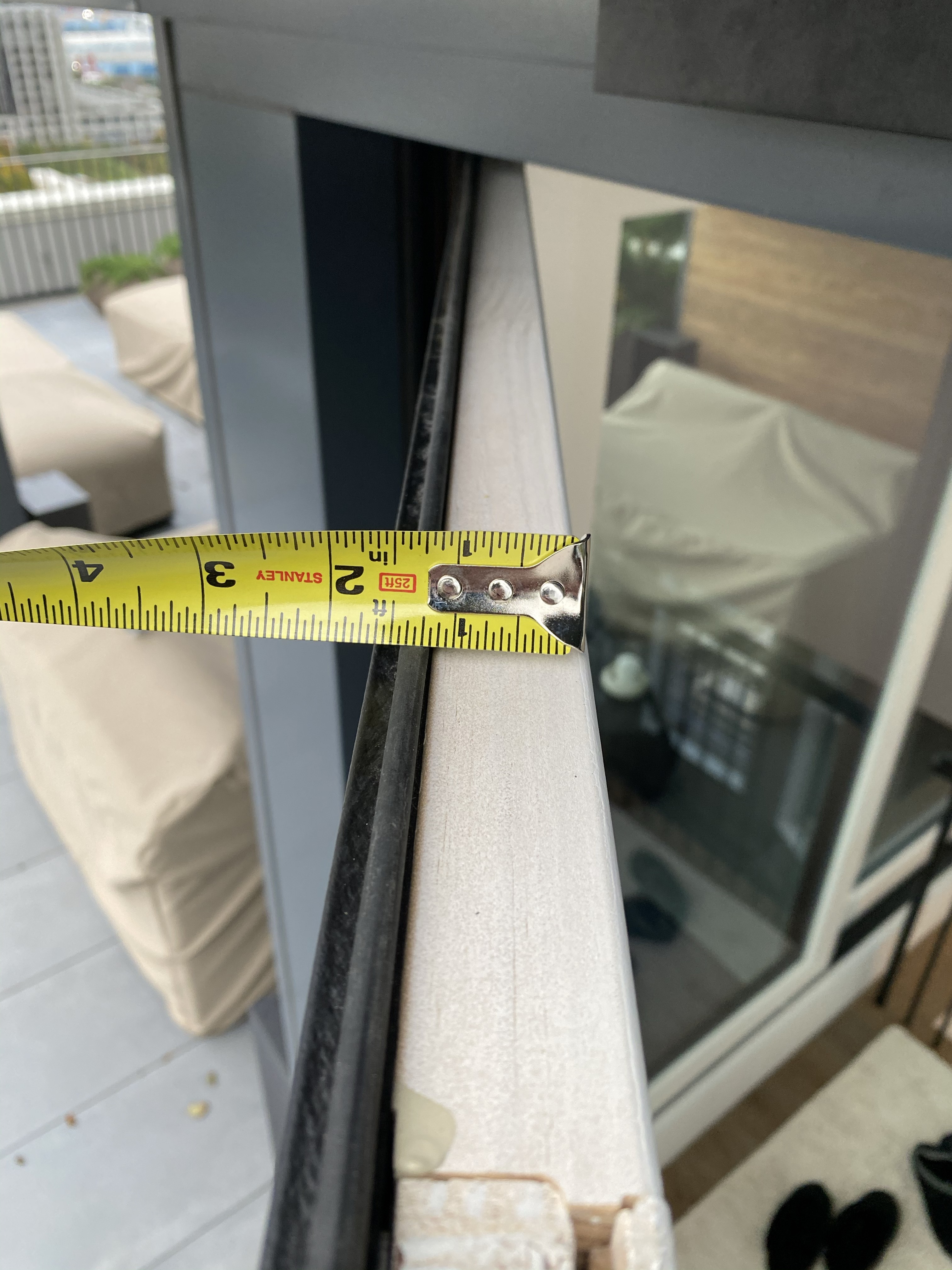

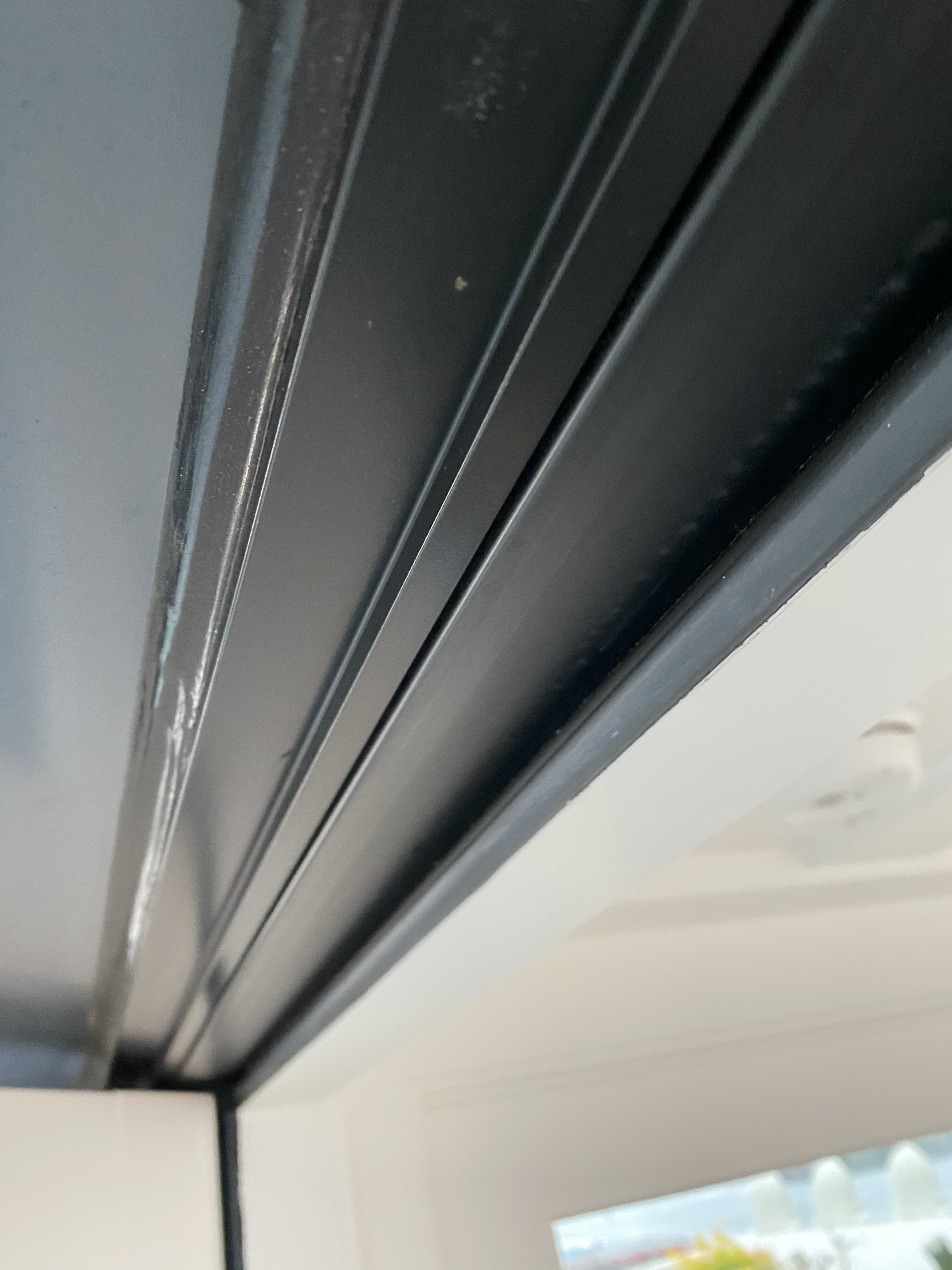

Q: I’m working on providing an overhead door stop for a project I’m on. I’m hoping you could help with the selection. The client would like it to have the stop/hold open function. I’m thinking the concealed version will look best but afraid it may interfere with the gaskets on the jamb. So maybe you could provide both the concealed and surface mount options. This is an exterior 3/0-6/8 Marvin Hinged door that opens up to the 12th floor roof which doesn’t have much protection from the elements. Any help would be much appreciated. Images as seen here:

View Image

View Image

View Image

View Image

View Image

A: Stated plainly you do not have adequate room in the top of the door to mortise a concealed overhead stop or holder. Assuming your door is 36" wide, a residential application, you want a Stop function and hung on butt hinges I would suggest the Glynn Johnson 414S as seen here:

Download File

whcih can beppurchased at the link as seen here (select your finish):

Click Here
