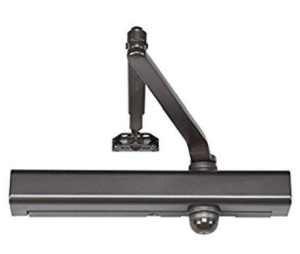

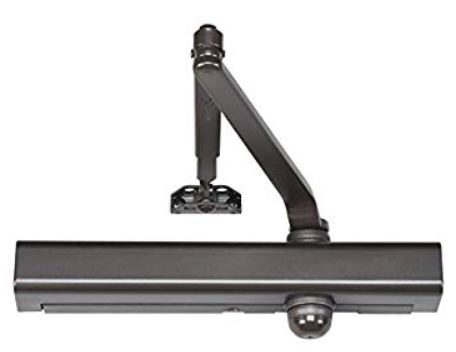

Norton 8301STH-690

The 8000 Series Door Closers offer the ideal combination of appearance, reliability and durability in today's market. With features such as staked valves, precise valve adjustment and a complete range of arm and cover options, this closer can meet virtually any application challenge.

• Adjustable spring sizes 1-6
• Application Slide Track Hold Open, Pull Side
• Exceeds 25 million cycles
• Hold Open: Yes
• Hold Open Type: Friction
• Non-handed
• Staked valves
• Standard, separate and independent, latch, sweep and backcheck intensity valves
• Cast aluminum body
• Rack and pinion design
• 1-1/4" (32mm) piameter piston
• 5/8" (16mm) diameter pinion journals
• 2-1/8" (54mm) projection (standard covers)
• All standard arm applications (with slim, full or metal covers) allow doors to swing 180°, conditions permitting
• Shipped with slim line plastic cover
• Finish: Dark Bronze Painted
• Fire Rated: No
• ANSI/BHMA A156.4, Grade 1 certified
• UL Listed
• UL10c compliant for positive pressure
• ADA compliant (8301 & 8501)
• UL10c compliant for positive pressure
• 25-year limited warranty
• Images may not represent actual product and finish.
• Packing & Sold as: Each.
• Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
