Norton 7500-693

copy to clipboard

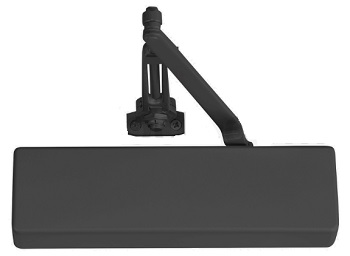

Norton 7500-693 Tri-Packed Door Closer, 1-6 Adjustable Size - Black Painted

enlarge

enlarge

× This image is for a similar product but it will differ in size, color and/or other attributes.

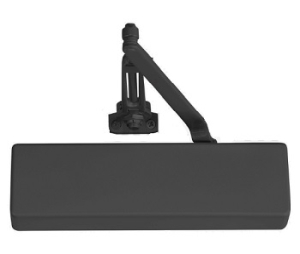

Norton 7500-693 Tri-Packed Door Closer, 1-6 Adjustable Size - Black Painted

More from Norton

Price: $342.02 USD

Ships From

Comments (Optional)

In Stock (Minimums Apply):

For quantities beyond the "In Stock" above, the item(s) ships in 15 business days.

+ Add to My Wish List

1-844-809-3667

Sales

sales@absupply.net

Technical Support

tech@absupply.net

Product Description:

Norton 7500-693 Tri-Packed Door Closer, 1-6 Adjustable Size - Black Painted

The 7500 Series Door Closer offers customers the ideal combination of superior performance, strength and quality. Ideal for interior or exterior doors in facilities that demand reliability.

Series Information:

Tri-Style® packaging for regular, top jamb or parallel arm mounting
Exceeds 25 million cycles
Rack-and-pinion design
Cast aluminum body
2-3/16" (56mm) projection
1-1/2" (38mm) diameter piston
5/8" (16mm) diameter pinion journals
Staked valves
Standard, separate and independent, latch, sweep and backcheck intensity valves
Backcheck positioning valve
NorGlide® fluid
Molded plastic cover
All standard arm applications allow doors to swing 180°, conditions permitting
Self-drilling screws

Features:

Door Closer

Type:Surface

Technology: Hydraulic

Mounting Location: Push or Pull Side

Mounting Style: Tri Mount (regular arm, top jamb and parallel arm mounting)

Closer Size: Adj. 1 to 6

Arm Type: Regular Arm

Hand: Non-Handed

Back Check: Adjustable

Cover: Plastic

Finish: Black Painted

Application: Tri-Packed

Limited Warranty: 25 Years

Fire Rated: 3 Hours

Certifications:

ANSI/BHMA A156.4, Grade 1 certified

ANSI/BHMA standard A117.1 certified

UL listed

UL10c compliant for positive pressure

Listed by the New York City Materials and Equipment Acceptance Division

Images may not represent actual product and finish.

Packing & Sold as: Each.

Note: Unit of measure is EA. When you buy a quantity of 1 you will get one piece. Price is for one piece.
